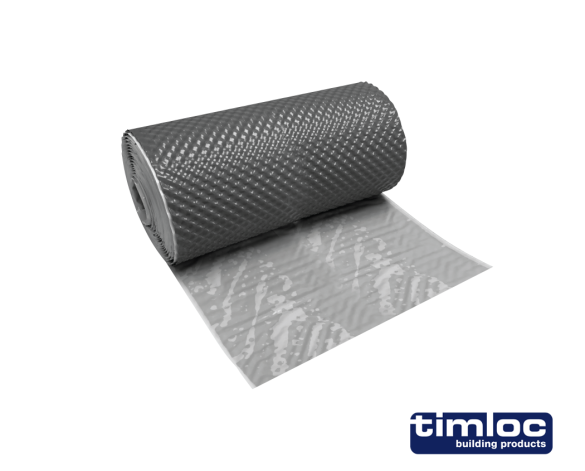

PbFree Lead-free Flashing

Description

The lead alternative high-performance, low-cost aluminium flashing

Use:

Same applications as traditional lead flashing including flat roof connection, dormers, valley gutters, step and cover flashing, cavity walls and apron flashing
Can be used in any climate worldwide (-40°C / +90°C)

Description	Product Code
PbFree Lead-free Flashing	LF150
PbFree Lead-free Flashing	LF300
PbFree Lead-free Flashing	LF450

Object Data

1 Revision

Last Updated

11/09/2024

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

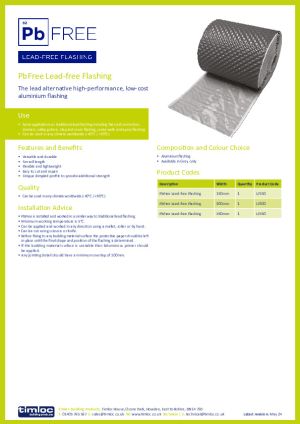

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorIH
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/timloc-pbfree/document/object-user-guide
Accessibility Performancen/a
Assembly CodeB1020
Asset TypeFixed
BIM Object NameTimloc_LeadFreeFlashing
Classification NameUniclass2015
Classification ValuePr_35_90_30_01
Code Performancen/a
ColorBlack
Constituentsn/a
Created Bysales@timloc.co.uk
Created On2024-09-01T09:00:00
Default Elevation0 mm
Depth150 mm
DescriptionThe lead alternative high-performance, low-cost aluminium flashing
Documentation Certificateswww.bimstore.co/products/timloc-pbfree/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/timloc-pbfree/document/installation-guide
Documentation Literaturewww.bimstore.co/products/timloc-pbfree/document/product-literature
Documentation Maintenancewww.bimstore.co/products/timloc-pbfree/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/timloc-pbfree/document/technical-data-sheet
Duration UnitYears
Expected Life0
Featuresn/a
FinishDimpled Textured
Graden/a
Height25 mm
Ifc Export AsIfcBuildingElementProxyType
Ifc Export TypeUSERDEFINED
KeynoteH60/840
ManufacturerTimloc Building Products
Manufacturer NameTimloc Building Products
MaterialAluminium flashing
ModelPbFree Lead-free Flashing
Model NumberLF150
Model ReferencePbFree Lead-free Flashing
NBS DescriptionAluminium flashings
NBS Object NameTimloc - Aluminium flashings
NBS Office Master Tagn/a
NBS Reference45-75-35/330
Nominal Depth150 mm
Nominal Height1 mm
Nominal Length5000 mm
Primary MaterialTimloc_Black
Production Year2024
Referenced StandardCan be used in any climate worldwide (-40°C / +90°C). Minimum working temperature is 5°C
Replacement Costn/a
ShapeRectangular
Size150 (W)
Spare Partsn/a
Tk2 mm
Type Comments150mm - LF150
Type Name150mm - LF150
URLtimloc.co.uk/products/pbfree-lead-free-flashing/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborsales@timloc.co.uk
Warranty Guarantor Partssales@timloc.co.uk
