Toilet Partitioning | Blade Floor Mounted

Description

Blade Mounted Overhead Braced & Ceiling Fixed

Unique engineered system that provides excellent ceiling clearance in low ceiling rooms, whilst the frontals are secured on a blade making easy floor cleaning.

Object Data

1 Revision

Last Updated

19/10/2026

Available Software

BSB

Compliant

EPD

Not Available

Accompanying literature

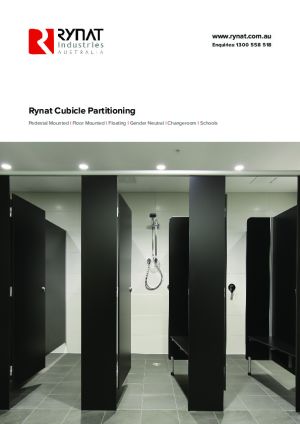

Product Literature

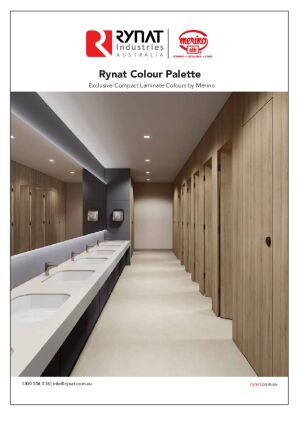

Colour Guide

Product Data Sheet

Object metadata

_Authorbimstore
_Created Bywww.bimstoreoz.au/
_Current Revision1
_Distributed Bywww.bimstoreoz.au/
Accessibility Performancen/a
Aluminium Profile MaterialRynat_Aluminium
Assembly CodeC1030100
Asset TypeFixed
BIM Object NameRynat_ToiletCubicle_BladeFloorMounted
Ceiling FixedYes
Classification NameUniclass2015
Classification ValueSs_25_12_60_60
Code Performancen/a
ColorUSER DEFINED
Constituentsn/a
Created Byinfo@rynat.com.au
Created On2026-10-01T09:00:00
Cubicle Depth1600 mm
Default Elevation0 mm
DescriptionRynat’s BSFM blade cubicle partitioning system is manufactured with 13mm compact laminate
Divider Height1900 mm
Divider Thickness13 mm
Documentation Certificateswww.bimstoreoz.au/products/89ab8c99-33d7-4b3f-a554-626fff30ba06/document/product-certificates
Documentation Installation Guidewww.bimstoreoz.au/products/89ab8c99-33d7-4b3f-a554-626fff30ba06/document/installation-guide
Documentation Literaturewww.bimstoreoz.au/products/89ab8c99-33d7-4b3f-a554-626fff30ba06/document/product-literature
Documentation Maintenancewww.bimstoreoz.au/products/89ab8c99-33d7-4b3f-a554-626fff30ba06/document/maintenance-information
Documentation Technicalwww.bimstoreoz.au/products/89ab8c99-33d7-4b3f-a554-626fff30ba06/document/technical-data-sheet
Door Accessories MaterialRynat_Aluminium
Door Height1900 mm
Duration UnitYears
End Profile VisNo
Expected Life0
Export Type to IFC AsIfcWall
Featuresn/a
Finishn/a
Floor Clearance170 mm
Frame Thickness13 mm
Free StandingNo
Graden/a
Ifc Export AsIfcWall
Ifc Export TypeIfcWallTypeEnum.PARTITIONING
KeynoteK32
Leg MaterialRynat_Aluminium
ManufacturerRynat Industries Australia Pty Ltd
Manufacturer NameRynat Industries Australia Pty Ltd
MaterialCompact Laminate
ModelBlade - Floor Mounted - Ceiling Fixed - R-BMCF13
Model NumberR-BMCF13
Model ReferenceBlade - Floor Mounted - Ceiling Fixed - R-BMCF13
NBS DescriptionPanel cubicle systems
NBS Noten/a
NBS Object NameRynat - Panel cubicle systems
NBS Office Master Tagn/a
NBS Reference25-05-60/160
Nominal Depth1600 mm
Nominal Height2400 mm
Overall Height2400 mm
Overhead BracedNo
Production Year2026
Referenced Standardn/a
Replacement Costn/a
ShapeRectangular
Sizen/a
Spare Partsn/a
Top Channel Offset5 mm
Type CommentsR-BMCF13
Type IFC Predefined TypeIfcWallTypeEnum.PARTITIONING
Type NameBlade - Floor Mounted - Ceiling Fixed - R-BMCF13
URLrynat.com.au/products/partitioning-systems/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborinfo@rynat.com.au
Warranty Guarantor Partsinfo@rynat.com.au
