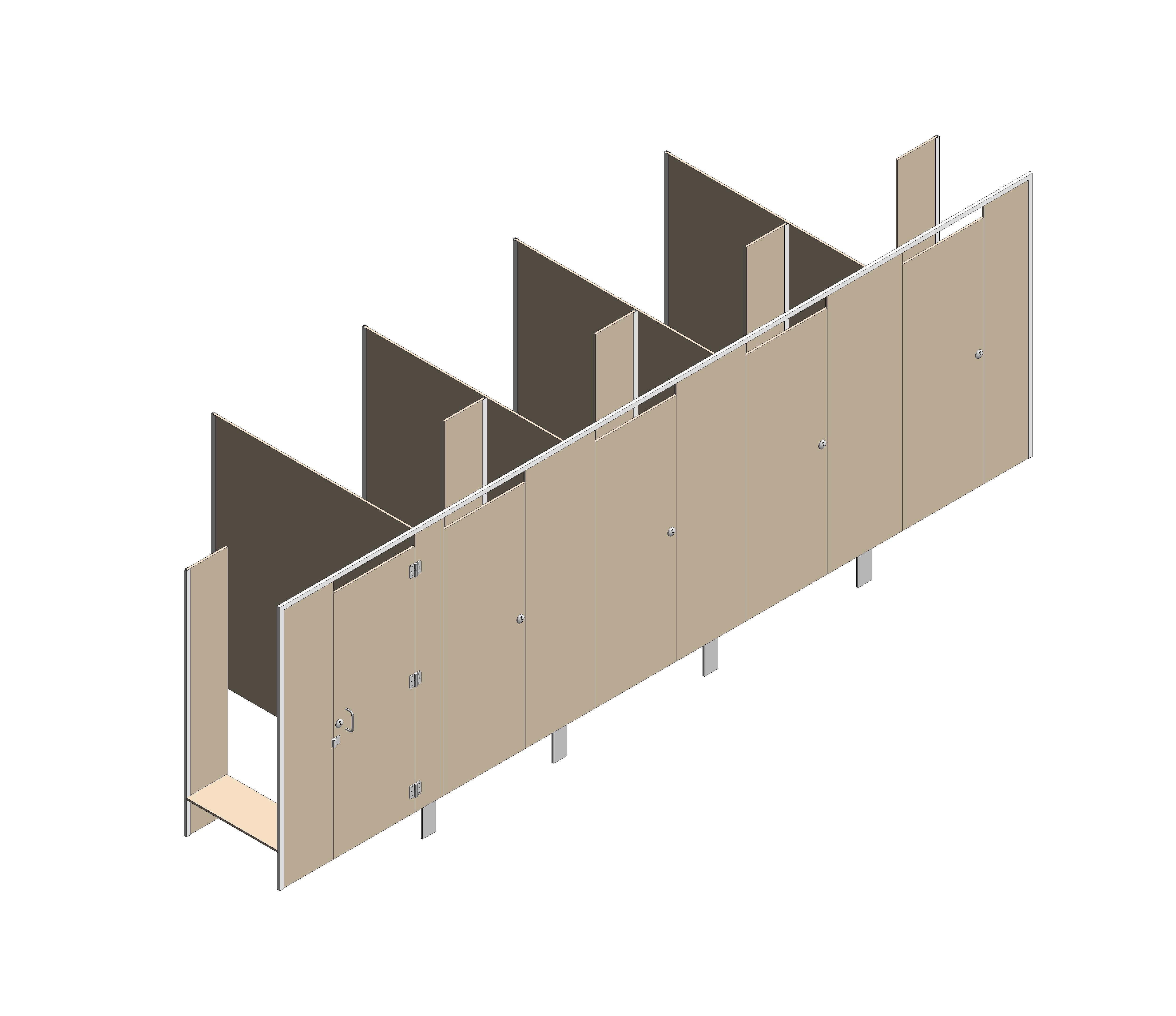

Shower – Blade Mounted (BO-S)

by Toilet Partitions Industries

Download Add to collection

Description

Shower – Blade Mounted Overhead Braced (BO-S)

The BO is the blade mounted option in TPI’s overhead-braced cubicle offering, renowned for strength, functionality and economy. As with pedestal-mounts, the BO design delivers the lowest cost for materials used.

Version 2 - VBIS (Virtual Buildings Information System) classification added

Object Data

2 Revision

Last Updated

14/01/2026

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

Product Data Sheet

Object metadata

_AuthorIH
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co/
_Current Revision2
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/
Accessibility Performancen/a
Aluminium Profile MaterialTPI_AluminiumProfile
Assembly CodeC1030100
Asset TypeFixed
BIM Object NameTPI_ShowerCubicle_BladeMounted
Classification NameUniclass2015
Classification ValueSs_25_12_60_60
Code Performancen/a
Colorn/a
Constituentsn/a
Created Byinfo@tpi.net.au
Created On2024-12-01T09:00:00
Cubicle Depth1600 mm
Default Elevation0 mm
Divider Height1900 mm
Divider Width13 mm
Documentation Certificateswww.bimstore.co/products/tpi-shower-blade-mounted/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/tpi-shower-blade-mounted/document/installation-guide
Documentation Literaturewww.bimstore.co/products/tpi-shower-blade-mounted/document/product-literature
Documentation Maintenancewww.bimstore.co/products/tpi-shower-blade-mounted/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/tpi-shower-blade-mounted/document/technical-data-sheet
Door Accessories MaterialTPI_StainlessSteel
Door Height1900 mm
Duration UnitYears
Expected Life0
Featuresn/a
Finishn/a
FixedYes
Frame Thickness13 mm
Free StandingNo
Graden/a
Ifc Export AsIfcWall
Ifc Export TypeIfcWallTypeEnum.PARTITIONING
KeynoteK32
ManufacturerToilet Partition Industries (TPI)
Manufacturer NameToilet Partition Industries (TPI)
Material13mm Compact Laminate
ModelShower - Blade Mounted - Overhead Braced
Model NumberBO-S
Model ReferenceShower - Blade Mounted - Overhead Braced
NBS DescriptionPanel cubicle systems
NBS Noten/a
NBS Object NameTPI - Panel cubicle systems
NBS Office Master Tagn/a
NBS Reference25-05-60/160
Nominal Depth1600 mm
Nominal Height2010 mm
Open In Left HandTPI - Door : Open In - Left Handed
Open In Right HandTPI - Door : Open In - Right Handed
Open Out Left HandTPI - Door : Open Out - Left Handed
Open Out Right HandTPI - Door : Open Out - Right Handed
Overall Height2010 mm
Panel Height From Level200 mm
Production Year2024
Referenced StandardAmbulant cubicles to comply with AS1428.1-2009
Replacement Costn/a
ShapeRectangular
Size1600 mm(D) x 2010 mm(H)
Spare Partsn/a
Top Channel Offset5 mm
Type NameOverhead Braced (BO-S)
URLtpi.net.au/product/blade-mounted-overhead-braced-bo-s/
Warranty DescriptionMaterial 10 years. Door Hardware 2 years.
Warranty Duration Labor5
Warranty Duration Parts7
Warranty Duration UnitYears
Warranty Guarantor Laborinfo@tpi.net.au
Warranty Guarantor Partsinfo@tpi.net.au
