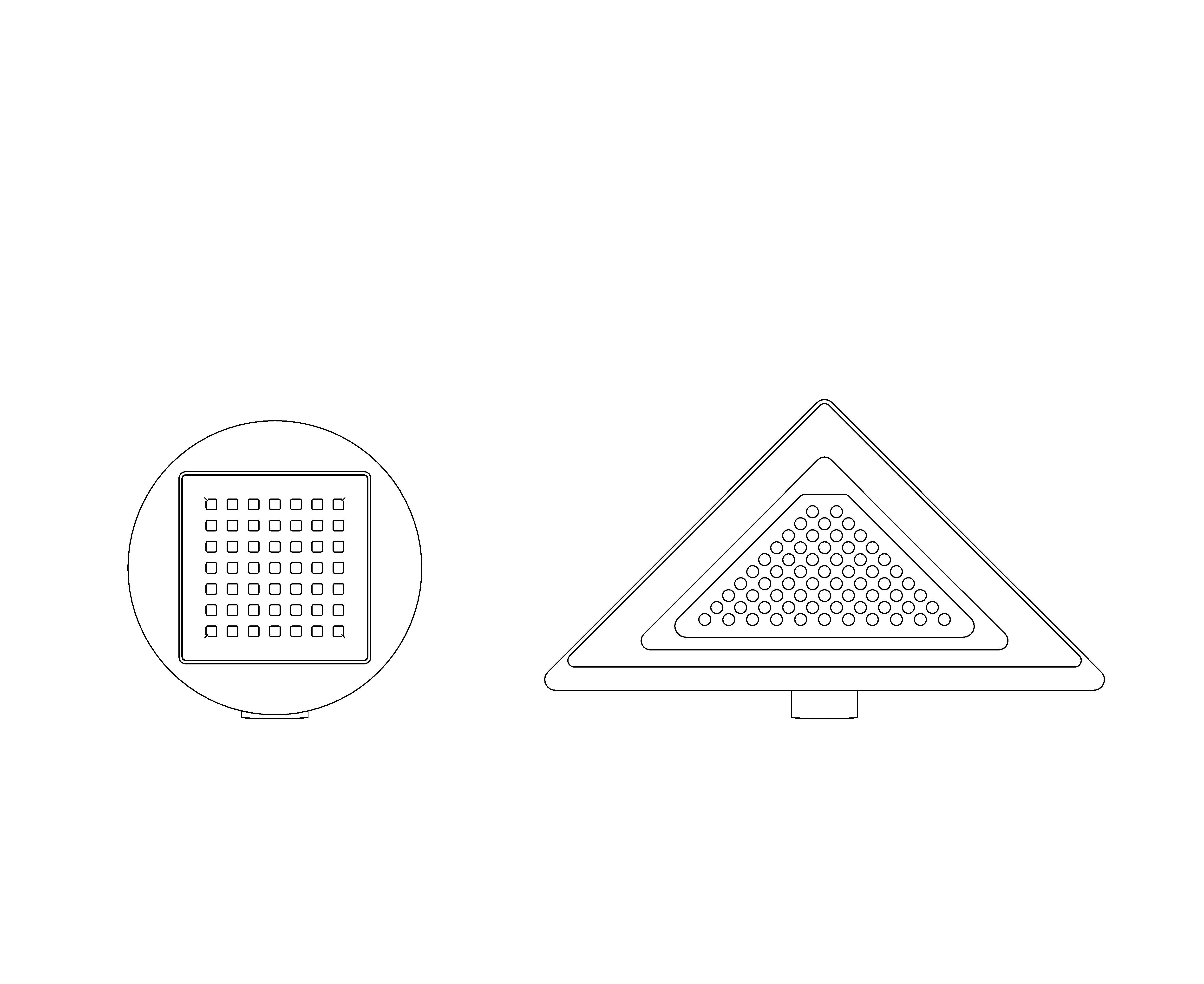

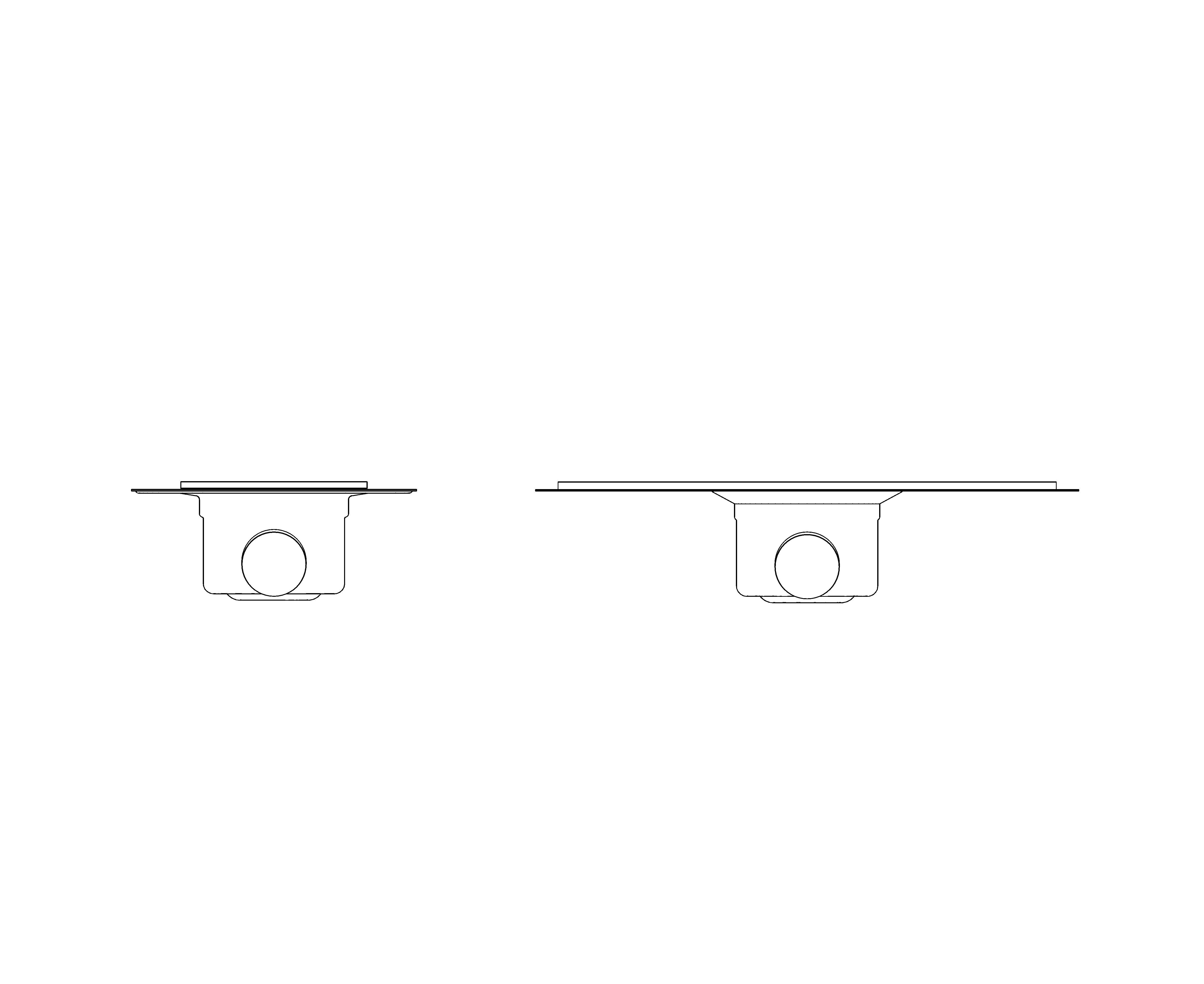

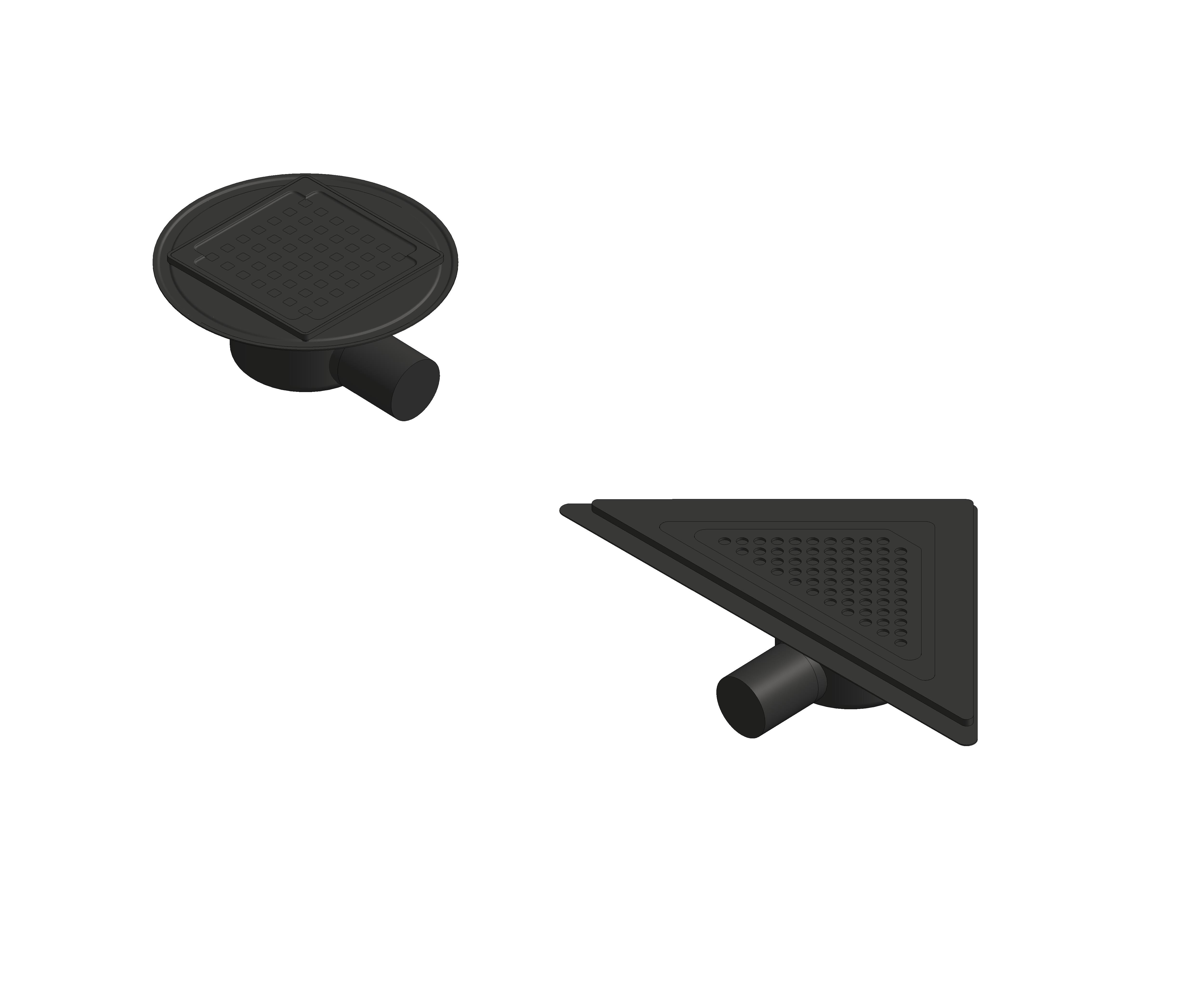

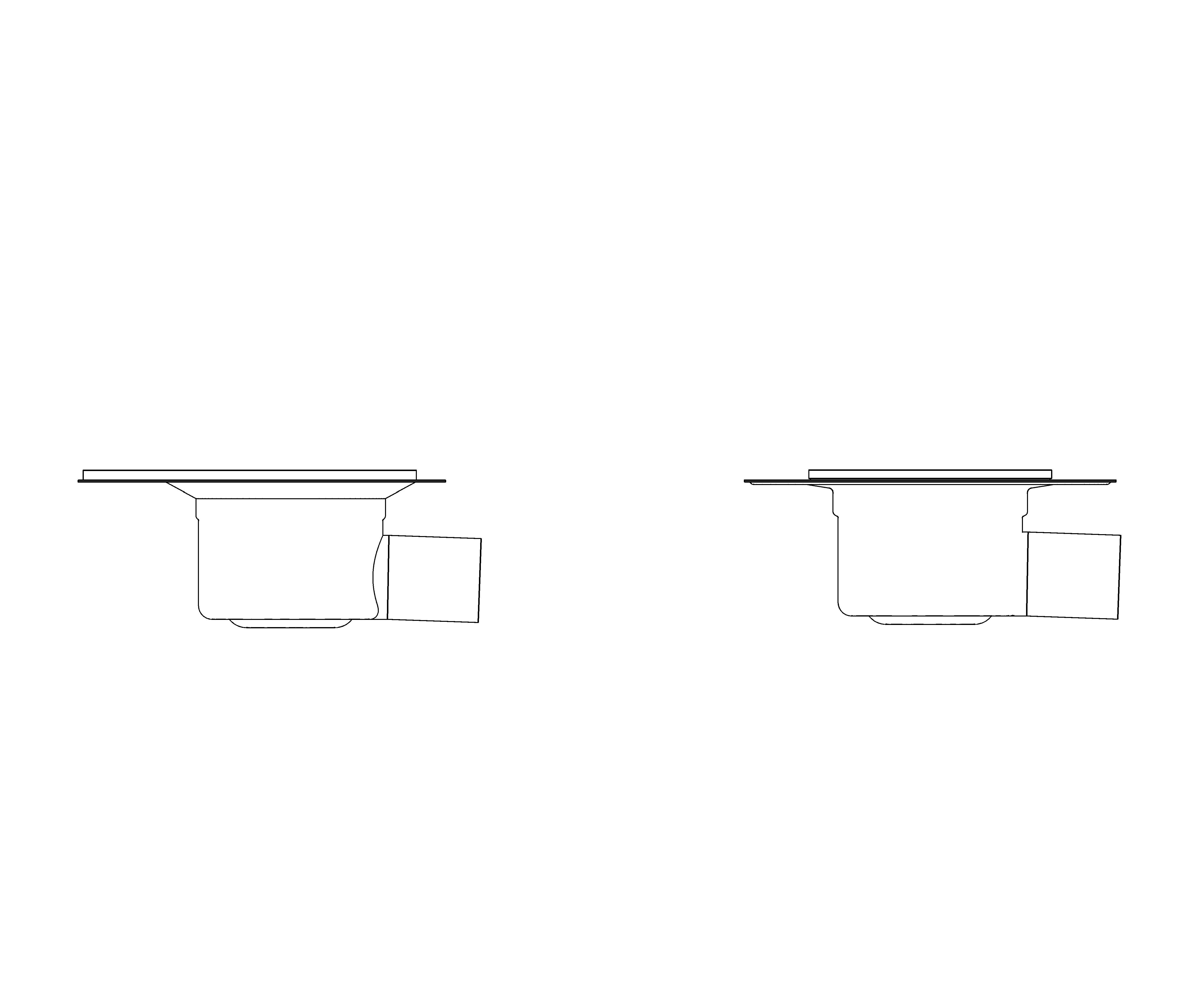

Floor Drain Two Part, series 382, Square or Triangle-wall mounted

Description

Drains & Upper Parts with Square Top (382.300.050) or Triangular Top (382.360.050) : Drain-Liquid membrane

• Adjustable shower drain trio, low

• Made from acid-pickled stainless steel.

• Designed in accordance with standard EN1253.

• Quality controlled and tested including a 0,5 bar leakage testing.

• Height-adjustable.

• With removable water trap

• Floor: concrete and tiled

• Liquid membrane or stick-sheet applications

• Outlet: Ø50mm, horizontal

• Stainless steel: AISI304/EN1.4301

Key Component Features:

• 360 degree Lower Part
• User adjustable visibilities
• Automated product codes
• Height adjustable upper frame to accommodate tile construction
• Pre-selected concrete cut out / base concrete slab option for installation purpose

Item    : 382.300.050 V, 382.360.050 V, 382, 506.050.110 S
