2 Piece Stainless Steel Anti-Static Ball Valve, Flanged [00/0454]

by Valves Instruments Plus

Download Add to collection

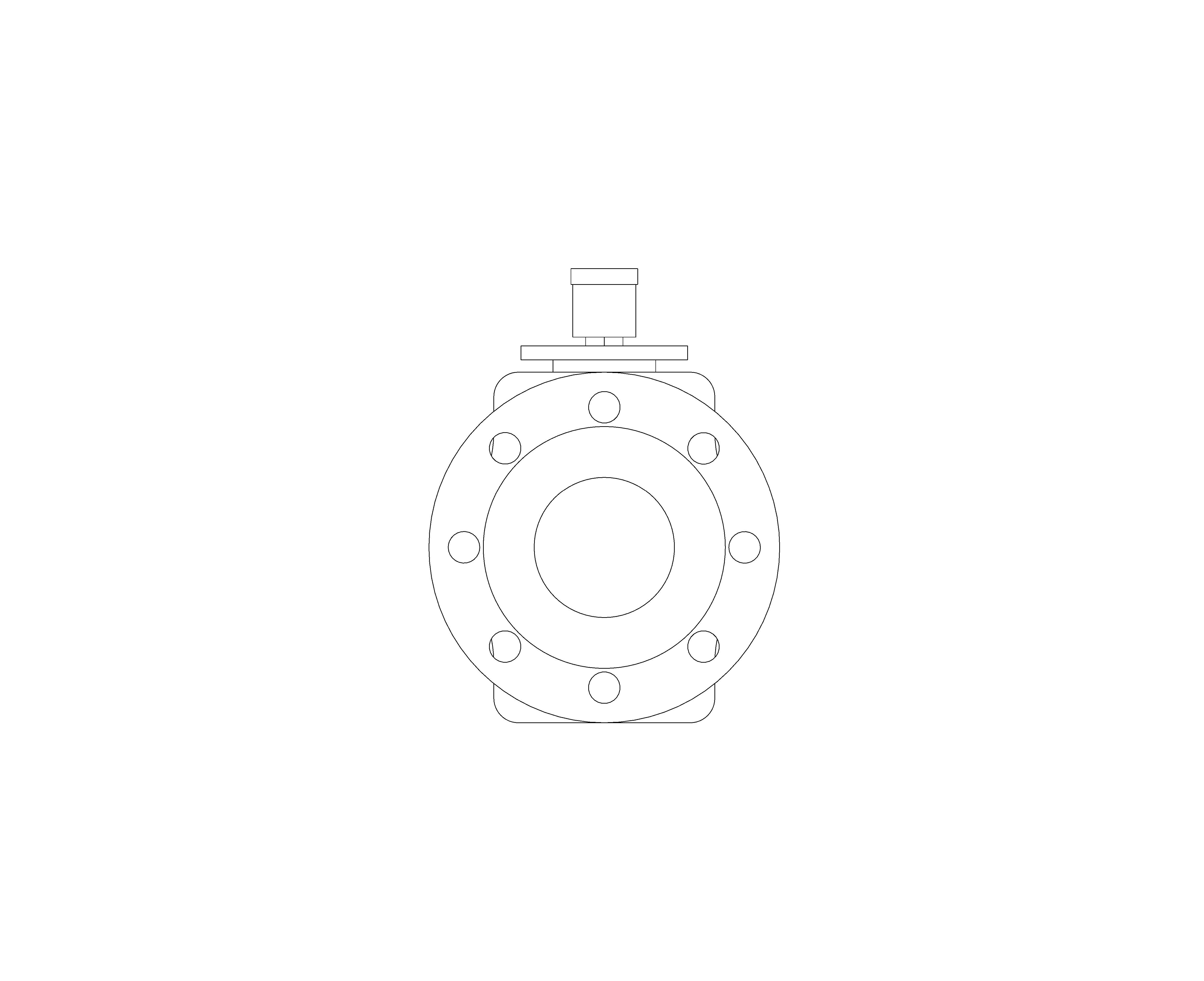

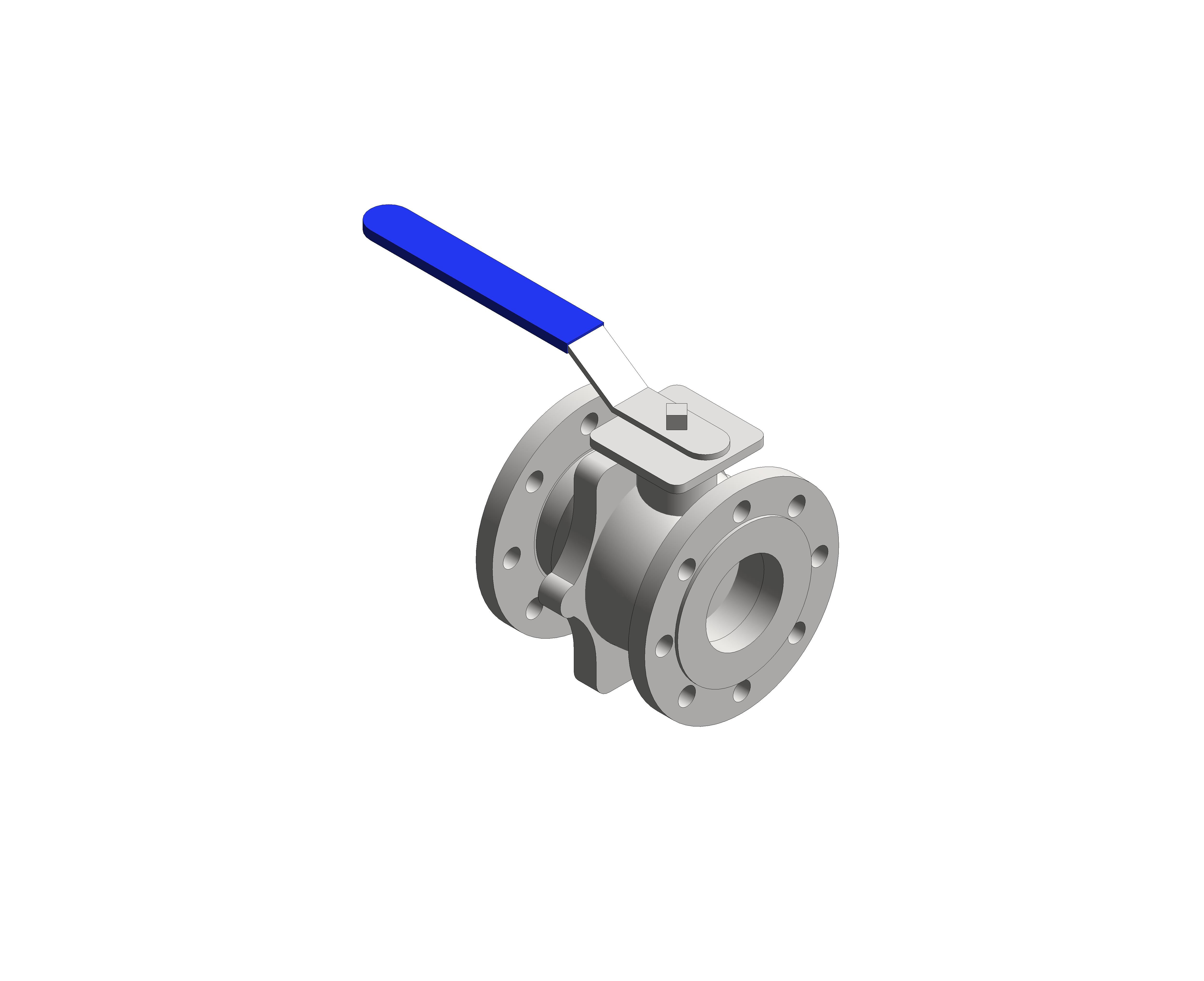

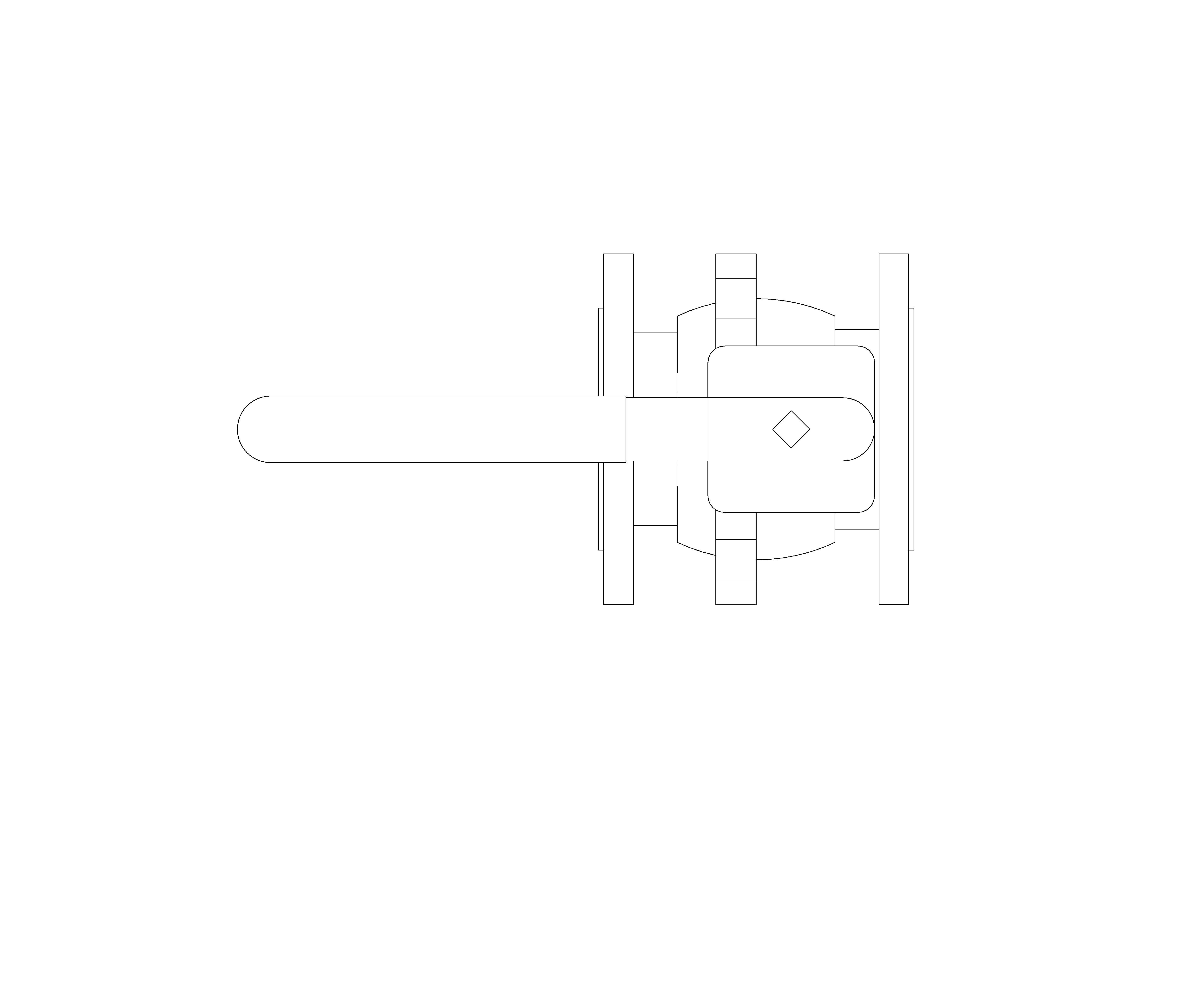

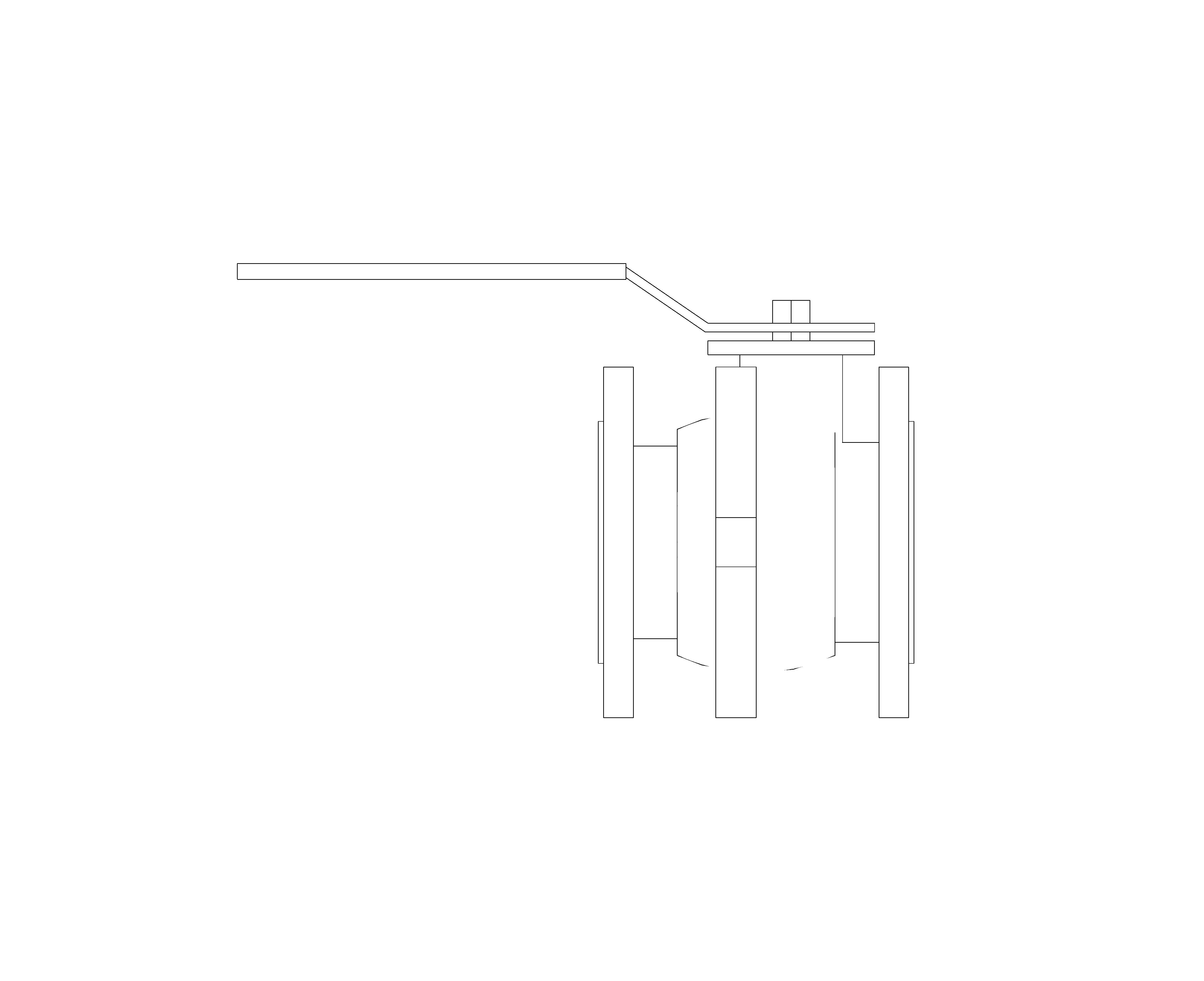

Description

Full bore 316 stainless steel 2-piece anti-static ball valve, with reinforced PTFE seats, ISO pad, locking lever, and PN16 flanges.

Specification:

Working pressure: 16 / 40 Bar
Working temperature: -20 to 210°C
Stainless steel CF8M/316 construction
Full bore, 2 piece anti-static design
Reinforced PTFE seats
ISO 5211 pad and locking lever

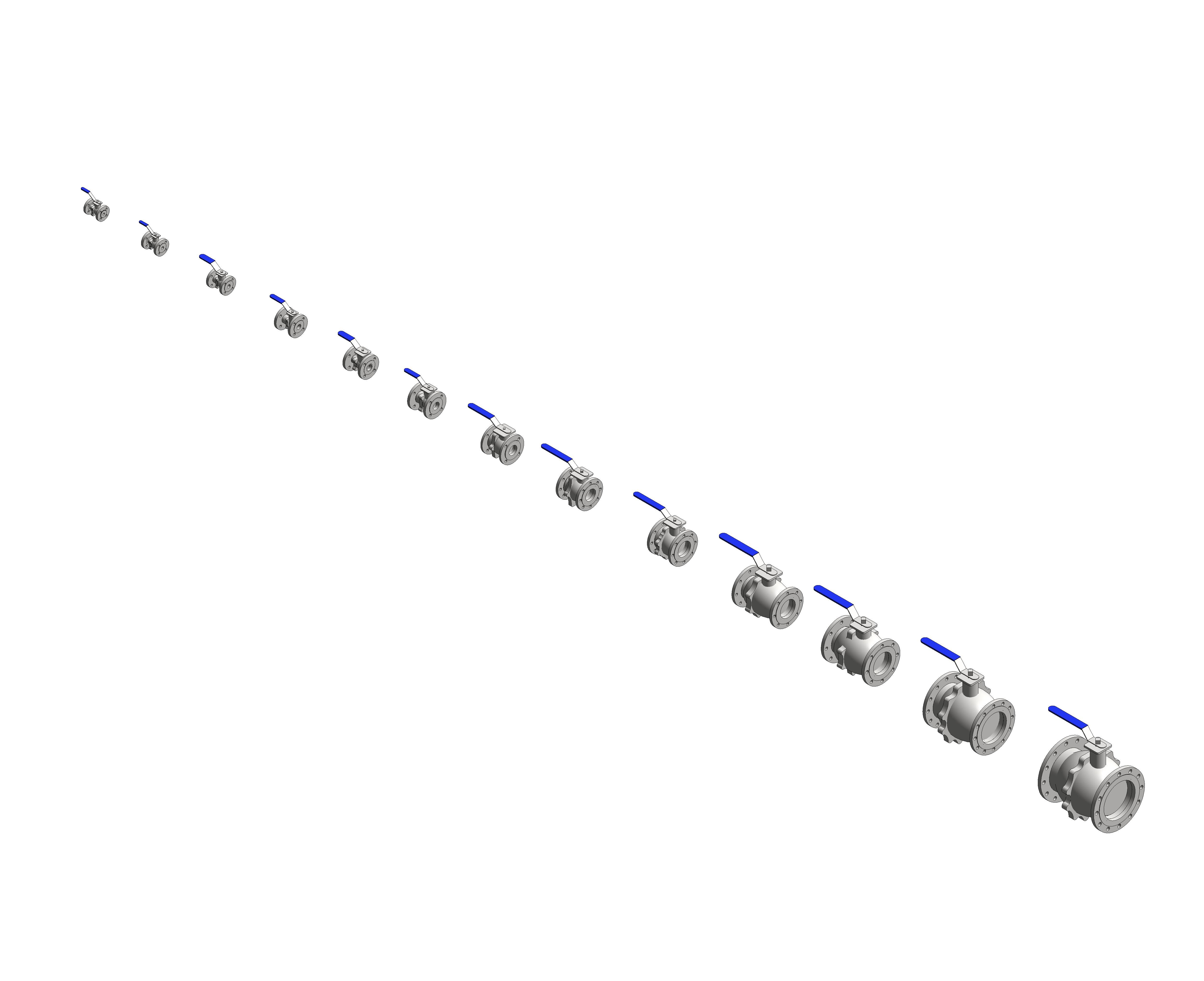

Flanged and drilled to PN40RF (1/2” - 2”),
PN16RF (2 1/2” - 6”)

Object Data

1 Revision

Last Updated

23/02/2026

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

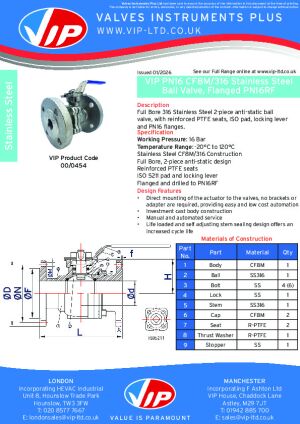

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorIH
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/vip-00-0454/document/object-user-guide
Accessibility Performancen/a
Assembly CodeC1030
Asset TypeFixed
Ball Valve Body Diameter48 mm
Ball Valve Body Radius24 mm
Ball Valve Inside Diameter15 mm
Ball Valve Inside Radius8 mm
Ball Valve Outside Diameter48 mm
Ball Valve Outside Radius24 mm
BIM Object NameVIP_StainlessSteelBallValve_PN16_(00-0454)
Body Offset20 mm
Classification NameUniclass 2015
Classification ValuePr_65_54_95_81
Code Performancen/a
ColorGrey
Connection Offset46 mm
Connection Width15 mm
Constituentsn/a
Created Bysales@vip-ltd.co.uk
Created On2024-11-04T09:00:00
Default Elevation0 mm
DescriptionFull bore 316 stainless steel 2-piece anti-static ball valve, with reinforced PTFE seats, ISO pad, locking lever, and PN16 flanges.
DN15 mm
Documentation Certificateswww.bimstore.co/products/vip-00-0454/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/vip-00-0454/document/installation-guide
Documentation Literaturewww.bimstore.co/products/vip-00-0454/document/product-literature
Documentation Maintenancewww.bimstore.co/products/vip-00-0454/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/vip-00-0454/document/technical-data-sheet
Duration UnitYears
Expected Life0
Export Type to IFC AsIfcPipeFitting
Featuresn/a
Finishn/a
Flange Diameter95 mm
Flange End Radius23 mm
Flange Holes Center65 mm
Flange Holes Diameter14 mm
Flange Length14 mm
Flange Outside Diameter30 mm
Full BodyNo
Graden/a
Half BodyYes
Half Length58 mm
HandleVIP - Stainless Steel
Handle Centre66 mm
Handle Diameter32 mm
Handle GripVIP - Blue Plastic
Handle Plate40 mm
Handle Plate Height54 mm
Holes Angle45.00 °
Ifc Export AsIfcPipeFitting
Ifc Export TypeIfcPipeFittingType
KeynoteS
L12 mm
Length115 mm
ManufacturerVIP
Manufacturer NameVIP
Materialn/a
Max Working Pressure16 Bar
Max Working Temperature-20°C to 120°C
Model00/0454 VIP PN16 CF8M/316 Stainless Steel Anti-Static Ball Valve, Flanged PN16RF
Model Number00-0454-15
Model ReferenceStainless Steel Ball Valve
NBS DescriptionSteel ball valves
NBS Noten/a
NBS Object NameVIP - Steel ball valves
NBS Office Master Tagn/a
NBS Reference90-10-90/331
No Holes4
Nominal Depth95 mm
Nominal Height95 mm
Nominal Length115 mm
Plate Height4 mm
Plate Radius4 mm
Primary MaterialVIP - Stainless Steel
Production Year2024
Referenced Standardn/a
Replacement Costn/a
Shapen/a
SizeDN15
Spare Partssales@vip-ltd.co.uk
Type Comments00-0454-15
Type IFC Predefined TypeIfcPipeFittingType
Type NameDN15
URLwww.vip-ltd.co.uk/Valves/VIP_Stainless_Steel_Products/00_0454/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborsales@vip-ltd.co.uk
Warranty Guarantor Partssales@vip-ltd.co.uk
