Vitracore G2 Engineered Aluminium Cladding Panel System
by Fairview
Description
Vitracore G2 is an engineered panel designed for high performance as a façade material, that is half the weight, 5x more rigid and has 70% greater resistance to oil canning than its solid panel counterparts. It’s the ideal façade product for all types of construction from residential developments to large-scale government infrastructure projects.
The lightweight nature of the panels aid the installation procedure and efficacy, reducing overall construction cost.
Providing an almost unlimited range of colours and finishes, including the option of customisable graphic panels through the Fairview VitraArt option, Vitracore G2 is the ideal solution to high demand industry requirements for innovative and functional façade demands.
| Material | Engineered aluminium panel |
| Finish | The highly recognised PVDF or FEVE Paint System known for its high durability, providing the optimum resistance to weather and industrial pollution. |
| Fixing System | A cassette style concealed fixing system which is the same to fabricate and install as traditional ACPs |
| Warranty | 15-year warranty, subject to standard terms and conditions |
| Application | Type A, B and C constructions where non-combustible materials are required, such as mixed-use developments, residential construction, and large-scale government infrastructure projects like hospitals. |
Object Data
1 Revision
Last Updated
02/06/2025
Available Software
BSB
Compliant
EPD
Available
Sustainability & Environmental Data
Approved Sustainability Data from an EPD
This data is supplied by the manufacturer and certified by an approved third party.
- Biogenic CO2e (A1-A3,B1-B5,C1-C4) 0.789 kg
- Total CO2e (Fossil) 69.3 kg
- Manufacturing (A1-A3) 95 kg
- Transport to Site (A4) kg
- On-Site Installation (A5) kg
- Use & Maintenance (B1-B5) kg
- End of Life (C1,C3,C4) 0.531 kg
- Recycled Content %
- Recyclable Content 98 %
- Re-use Potential %
- Energy Recovery Possibility 0 %
- Water Use 0.01 L
- Ozone Depletion Potential 1.07 mg CFC-11eq
- Expiry22nd Nov 2023 - 22nd Nov 2028
Environmental Product Declarations

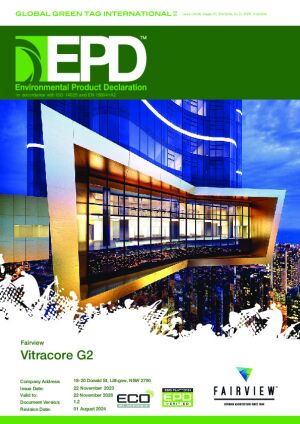

Environmental Product Declaration (EPD)
Valid until 22nd Nov 2028
