AC Powered Smoke & CO Alarm (SMCO110V-AC, SM110V-AC)

by Resideo: Smart Home Products and Systems

Download Add to collection

Description

AC Powered First Alert® Smoke (SM110) and Smoke & Carbon Monoxide (SMCO110) Alarms are designed to provide early warning of smoke and CO danger.

Models: SMCO110V-AC, SM110V-AC

SKUs: 1046791, 1048322

Click here to learn more at Resideo

Object Data

1 Revision

Last Updated

10/10/2025

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

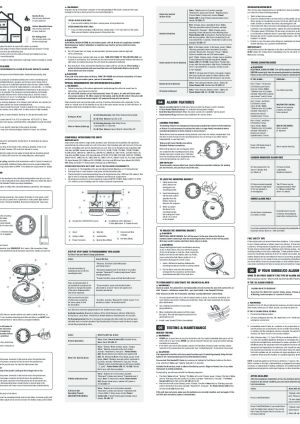

Product Literature

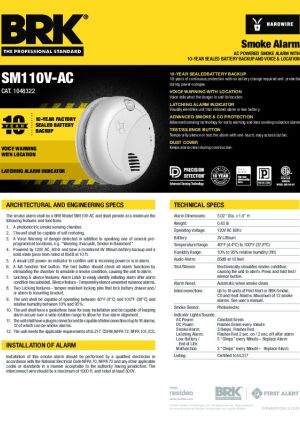

Technical Data Sheet

Product Data Sheet

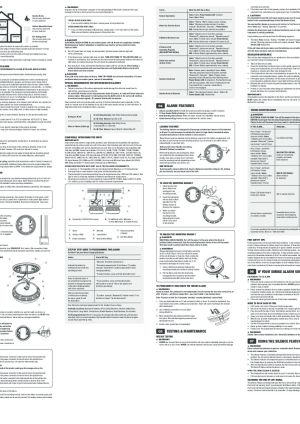

Product Literature

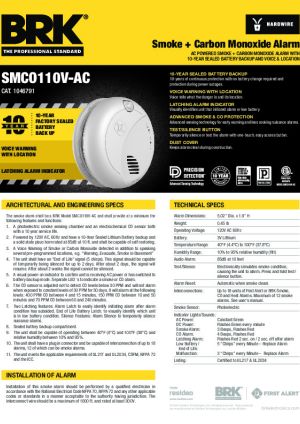

Technical Data Sheet

Object metadata

_AuthorSM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/9c965b4a-4ded-457a-b912-addcfe378515/document/object-user-guide
Accessibility Performancen/a
Alarm TypeAudible (P-Horn, ≥85 dB @ 10 ft / 3m), LED indicators
Assembly CodeD50
Asset TypeFixed
Battery Type3V Sealed Lithium Battery (non-replaceable, 10-year life)
BIM Object NameResideo_FireAlarm_110V-AC
BrandFirst Alert
CertificationsCertified to UL217
Classification NameUniclass2015
Classification ValuePr_75_50_76_12
CO Alarm Triggering Thresholds68 PPM: 60–240 min, 150 PPM: 10–50 min, 400 PPM: 4–15 min
Code Performancen/a
Colorn/a
ConnectivityWired
Constituentsn/a
CO SensorElectrochemical
Country Of ManufactureMexico
Created Bywww.resideo.com/gb/en/contact-us/
Created On2025-05-08 T09:00:00
Default Elevation0 mm
DescriptionCombination Smoke and Carbon Monoxide Alarm
Detection MediumAir (Smoke & CO)
Documentation Certificateswww.bimstore.co/products/9c965b4a-4ded-457a-b912-addcfe378515/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/9c965b4a-4ded-457a-b912-addcfe378515/document/installation-guide
Documentation Literaturewww.bimstore.co/products/9c965b4a-4ded-457a-b912-addcfe378515/document/product-literature
Documentation Maintenancewww.bimstore.co/products/9c965b4a-4ded-457a-b912-addcfe378515/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/9c965b4a-4ded-457a-b912-addcfe378515/document/technical-data-sheet
Duration UnitYear
End Of Life IndicatorYes, 10-year with audible and visual alert
Expected Life10
Featuresn/a
Finishn/a
Graden/a
Ifc Export AsIfcSensorType
Ifc Export TypeIfcSensorTypeEnum.SMOKESENSOR
KeynoteW
ListingsUL 217 (Smoke), UL 2034 (CO), FCC, IC, CSFM, Z-Wave Plus
ManufacturerResideo
Manufacturer NameResideo
Materialn/a
ModelSMCO110V-AC
Model NumberSMCO110V-AC
Model ReferenceCombination Smoke and Carbon Monoxide Alarm
Mounting LocationCeiling/Wall
Mounting TypeSurface Mount
NBS DescriptionFire Alarm
NBS Noten/a
NBS Object NameResideo - Fire Alarm
NBS Office Master Tagn/a
NBS Reference90-65-50/490
Nominal Depth130 mm
Nominal Height53 mm
Nominal Length130 mm
Operating Environment40–100°F, 10–95% RH (non-condensing)
Production Year2025
Referenced Standardn/a
Replacement Costn/a
ShapeRound
Size5.0 in (127 mm) diameter x 2.12 in (54 mm) height
SKUSMCO110V-AC
Smart Home IntegrationFalse
Spare Partsn/a
Standards MetUL 217, STD UL2034
Type CommentsCombination Smoke and Carbon Monoxide Alarm - SMCO110V-AC
Type NameCombination Smoke and Carbon Monoxide Alarm - SMCO110V-AC
URLwww.resideo.com/
Warranty Descriptionn/a
Warranty Duration Labor10
Warranty Duration Parts10
Warranty Duration UnitYears
Warranty Guarantor Laborwww.resideo.com/gb/en/contact-us/
Warranty Guarantor Partswww.resideo.com/gb/en/contact-us/
Weight0.4

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
