ART 270 - PN16 Stainless Steel Orifice Plate (OP)

by Albion Valves

Download Add to collection

Description

Description
PN16 Stainless Steel Orifice Plate (OP). Fixed Orifice. C/W Ext & Test Points.

Stock Availability
DN50-300 stocked in the UK. Sizes DN300+ are subject to factory lead time.

Connection
Wafer pattern. Fits between BS EN1092 flanges PN16.

Pressure
16 Bar Rated

Temperature
-10°C to +120°C

Object Data

1 Revision

Last Updated

02/03/2020

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

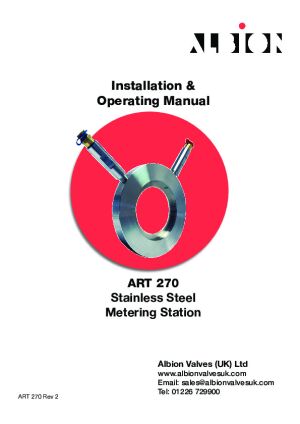

Installation Guide

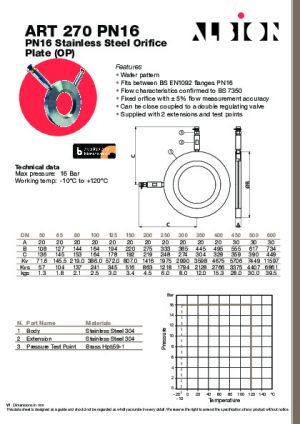

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorRL
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
_Object User Guidewww.bimstore.co/products/art-270/document/object-user-guide
A20 mm
Accessibility Performancen/a
Angle45.00 °
Assembly CodeD20
Asset TypeFixed
B164 mm
BIM Object NameAlbionValves_PipeAccessories_MeteringStation_ART270
C164 mm
Classification NameUniclass2015
Classification ValuePr_65_54_95_30
Code Performancen/a
ColorSilver & Yellow
Connection Size100 mm
Constituentsn/a
Created Bysales@albionvalvesuk.com
Created On2019-07-01T09:00:00
D284 mm
D2 Thickness5 mm
DescriptionPN16 Stainless Steel Metering Station
Documentation Certificateswww.albionvalvesuk.com/
Documentation Installation Guidewww.albionvalvesuk.com/
Documentation Literaturewww.albionvalvesuk.com/
Documentation Maintenancewww.albionvalvesuk.com/
Documentation Technicalwww.bimstore.co/products/art-270/document/technical-data-sheet
Duration UnitYears
Expected Life0
Featuresn/a
Finish304 Stainless Steel & Brass
Graden/a
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.CHECK
KeynoteS
ManufacturerAlbion Valves
Manufacturer NameAlbion Valves
Material304 Stainless Steel & Brass
Max Pressure16 Bar
ModelPN16 Stainless Steel Metering Station
Model NumberDN100 - DN4"
Model ReferencePN16 Stainless Steel Metering Station
NBS DescriptionFlow measuring valves
NBS Object NameAlbion Valves - Flow measuring valves
NBS Office Master Tagn/a
NBS Reference90-10-90/358
Nominal Depth20 mm
Nominal Height164 mm
Nominal Length164 mm
Production Year2019
Referenced Standardn/a
Replacement Costn/a
Shapen/a
SizeDN100 - DN4"
Size DN100
Spare Partsn/a
Tap Length82 mm
Thread Inch4
Thread Millimetre102 mm
Type CommentsDN100 - DN4"
Type NamePN16 Stainless Steel Metering Station
URLwww.albionvalvesuk.com/
Valve FinishStainless Steel AISI 304
Valve Finish 2Brass
Warranty DescriptionAgainst manufacturing defects.
Warranty Duration Labor1
Warranty Duration Parts1
Warranty Duration UnitYears
Warranty Guarantor Laborsales@albionvalvesuk.com
Warranty Guarantor Partssales@albionvalvesuk.com
Weight2.0 kg
Working Temperature-10°C to +120°C
