Directional Tile Indicators

by Classic Architectural Group

Download Add to collection

Description

Guide pedestrians with confidence using Classic’s Directional Tactiles. Directional tactile surfaces are specifically designed to provide guidance and indicate the flow of movement. Our tactile indicators meet Australian standards and are the first choice by many for accessibility.

Fibreglass	Black - 600 x 300 - FRP69 Yellow - 600 x 300 - FRP69 White - 600 x 300 - FRP69
Ceramic	Charcoal - 300 x 300 - CD49 Ivory - 300 x 300 - CD49 Yellow - 300 x 300 - CD49
Polyurethane	Black - 300 x 300 - PT39 Blue - 300 x 300 - PT39 Red - 300 x 300 - PT39 Tangerine - 300 x 300 - PT39 Mid Grey - 300 x 300 - PT39 Yellow - 300 x 300 - PT39 Beige - 300 x 300 - PT39 Light Grey - 300 x 300 - PT39 White - 300 x 300 - PT39

Object Data

1 Revision

Last Updated

17/11/2025

Available Software

EPD

Not Available

Accompanying literature

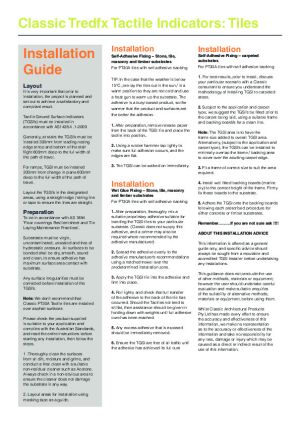

Installation Guide

Maintenance Information

Product Data Sheet

Object metadata

Object

Parameter Type

_AuthorIH
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstoreoz.au/
_Current Revision1
_Distributed Bywww.bimstoreoz.au/
2nd Array Offset0 mm
Accessibility Performancen/a
Actual Depth260 mm
Actual Length225 mm
ApplicationInterior and Exterior
ArrayNo
Arrow L138 mm
Assembly CodeC3020
Asset TypeFixed
BIM Object NameCAG_TactileIndicators_TileDirectionalBarSystem
Button TypeCAG_ArrayDirectionalBar : Standard
Classification NameUniclass2015
Classification ValuePr_25_93_60_08
Code Performancen/a
ColorUser Defined
Constituentsn/a
Created Byinfo@classic-arch.com
Created On2025-11-05T09:00:00
Default Elevation1219 mm
DescriptionWith an R12 slip resistance, Classic Tredfx Ceramic Tactiles offer high-quality directional guidance and warning of potential hazards. Available in charcoal, yellow and ivory, these tactiles are UV stabilised and offer a secure permanent inlaid solution for interior and exterior use.
Desired Depth300 mm
Desired Length300 mm
Distance Between Directional Bar Depth75 mm
Distance Between Directional Bar Length300 mm
Documentation Certificatesclassic-arch.com/product/CD49/
Documentation Installation Guideclassic-arch.com/wp-content/uploads/2024/05/CAG-Installation-Guide-_-Concrete-Ceramic-Pavers.pdf
Documentation Literatureclassic-arch.com/wp-content/uploads/2022/04/CD49_Product-Data-Sheet.pdf
Documentation Maintenanceclassic-arch.com/wp-content/uploads/2022/04/CAG-Care-Guide_Classic-Tredfx-Tactile-Indicators.pdf
Documentation Technicalclassic-arch.com/wp-content/uploads/2022/04/CD49-_Specification-Guide-1.pdf
Duration UnitYears
Expected Life0
External Depth35 mm
External Length225 mm
External Length Half Width113 mm
FeaturesWarning and directional tactiles to suit all applications. Individual, plate, tile and self-adhesive options. Anti-Slip with up to P5 slip rating. Interior and exterior options.
FinishGrooved Bar Top
Fire RatingFire Resistant
Frame MaterialCAG_TactileTile_Ceramic_Charcoal
Graden/a
Ifc Export AsIfcDiscreteAccessoryType
Ifc Export TypeUSERDEFINED
Insert MaterialCAG_TactileTile_Ceramic_Charcoal
Internal Depth25 mm
Internal Length215 mm
KeynoteM
LRV Resultsclassic-arch.com/wp-content/uploads/2022/04/Luminescent-Testing-Guide-Tactile-Indicators-1.pdf
Luminance Contrast Calculatorclassic-arch.com/dry-lrv-compliance-check/
ManufacturerClassic Architectural Group
Manufacturer NameClassic Architectural Group
MaterialCeramic
ModelClassic Tredfx Ceramic Tactiles - CD49
Model NumberCD49
Model ReferenceClassic Tredfx Ceramic Tactiles - CD49
NBS DescriptionBlister tactile pavers
NBS Object NameClassic Architectural Group - Blister tactile pavers
NBS Office Master Tagn/a
NBS Referencen/a
Nominal Depth300 mm
Nominal Height15 mm
Nominal Length600 mm
Number Of Bars4
Number Of Bars Horizontal1
Number Of Bars Horizontal Constraint2
Number Of Bars Vertical4
Number Of Bars Vertical Constraint4
Plate Offset0 mm
Plate Thickness10 mm
Production Year2025
Referenced StandardNCC and AS1428 compliant products available
Replacement Cost0
ShapeRectangular
SingleYes
Sizen/a
Slip RatingR12
Spare Partsn/a
Type CommentsGrooved Bar Top - Ceramic - Charcoal - 300 x 300 - CD49
Type NameClassic Tredfx Ceramic Tactiles - CD49
URLclassic-arch.com/
Warranty DescriptionLifetime Warranty
