Directional Bar Indicators

by Classic Architectural Group

Download Add to collection

Description

Guide pedestrians with confidence using Classic’s Directional Tactiles. Directional tactile surfaces are specifically designed to provide guidance and indicate the flow of movement. Our tactile indicators meet Australian standards and are the first choice by many for accessibility.

Grooved 10 Ring Top	Stainless Steel Silver - Rear Stud - SD19P
Cross-hatch Top	Polyurethane - Beige - Bladed Shaft - PD49 Polyurethane - Black - Bladed Shaft - PD49 Polyurethane - Blue - Bladed Shaft - PD49 Polyurethane - Mid Grey - Bladed Shaft - PD49 Polyurethane - Cobalt - Bladed Shaft - PD49 Polyurethane - Light Grey - Bladed Shaft - PD49 Polyurethane - Terracotta - Bladed Shaft - PD49 Polyurethane - Yellow - Bladed Shaft - PD49

Object Data

1 Revision

Last Updated

17/11/2025

Available Software

EPD

Not Available

Accompanying literature

Installation Guide

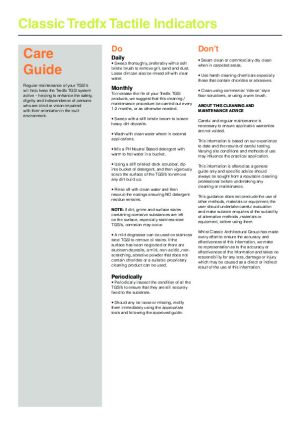

Maintenance Information

Product Data Sheet

Object metadata

_AuthorIH
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstoreoz.au/
_Current Revision1
_Distributed Bywww.bimstoreoz.au/
2nd Array Offset0 mm
Accessibility Performancen/a
ApplicationInterior and Exterior
Assembly CodeC3020
Asset TypeFixed
BIM Object NameCAG_TactileIndicators_DirectionalBarSystem
Button TypeCAG_ArrayDirectionalBar : Cross-hatch top with Bladed Shaft
Classification NameUniclass2015
Classification ValuePr_35_90_60_87
Code Performancen/a
ColorUser Defined
Constituentsn/a
Created Byinfo@classic-arch.com
Created On2025-11-05T09:00:00
Default Elevation1219 mm
DescriptionClassic Tredfx Polyurethane Tactiles are the ultimate solution for unique designs and layouts. Available in 9 colours, our cutting-edge poly tactiles range meets your tactile floor safety requirements in your style. UV resistant and ideal for both interior and exterior use.
Distance Between Directional Bar Depth75 mm
Distance Between Directional Bar Length300 mm
Documentation Certificatesclassic-arch.com/product/pathfinder-pd49-concrete/
Documentation Installation Guideclassic-arch.com/wp-content/uploads/2022/04/CAG-Product-Installation-Guide_Classic-Tredfx-Tactile-Indicators-Individual.pdf
Documentation Literatureclassic-arch.com/wp-content/uploads/2023/11/Pathfinder-PD49-Concrete_Product-Data-Sheet-2.pdf
Documentation Maintenanceclassic-arch.com/wp-content/uploads/2022/04/CAG-Care-Guide_Classic-Tredfx-Tactile-Indicators.pdf
Documentation Technicalclassic-arch.com/wp-content/uploads/2023/11/Pathfinder-PD49-Concrete-_Specification-Guide.pdf
Duration UnitYears
Expected Life0
External Depth35 mm
External Length290 mm
External Length Half Width145 mm
FeaturesWarning and directional tactiles to suit all applications. Individual, plate, tile and self-adhesive options. Anti-Slip with up to P5 slip rating. Interior and exterior options.
FinishCross-hatch Top
Fire RatingCritical Radiant Flux is 7.9 kW/m2 and Smoke Development Rate is 633 %/min
Frame MaterialCAG_TactileButton_Polyurethane_Beige
Graden/a
Ifc Export AsIfcDiscreteAccessoryType
Ifc Export TypeUSERDEFINED
Insert MaterialCAG_TactileButton_Polyurethane_Beige
Internal Depth25 mm
Internal Length280 mm
KeynoteM
LRV Resultsclassic-arch.com/wp-content/uploads/2022/04/Luminescent-Testing-Guide-Tactile-Indicators-1.pdf
Luminance Contrast Calculatorclassic-arch.com/dry-lrv-compliance-check/
ManufacturerClassic Architectural Group
Manufacturer NameClassic Architectural Group
MaterialPolyurethane
ModelClassic Tredfx Polyurethane Tactiles - PD49
Model NumberPD49
Model ReferenceClassic Tredfx Polyurethane Tactiles - PD49
NBS DescriptionTactile paving studs
NBS Object NameClassic Architectural Group - Tactile paving studs
NBS Office Master Tagn/a
NBS Reference45-20-62/350
Nominal Depth35 mm
Nominal Height15 mm
Nominal Length300 mm
Production Year2025
Referenced StandardNCC and AS1428 compliant products available
Replacement Cost0
ShapeRectangular
Sizen/a
Slip RatingP5
Spare Partsn/a
Type CommentsCross-hatch Top - Polyurethane - Beige - Bladed Shaft - PD49
Type NameClassic Tredfx Polyurethane Tactiles - PD49
URLclassic-arch.com/
Warranty DescriptionLifetime Warranty
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborinfo@classic-arch.com
Warranty Guarantor Partsinfo@classic-arch.com

Sustainability & Environmental Data

Not available.
