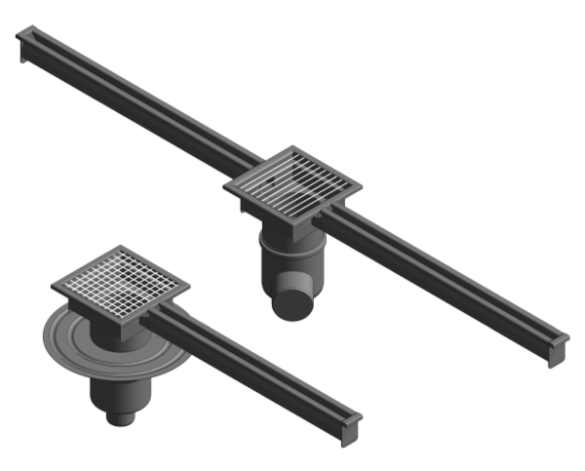

Channel 673 - Tile / Resin / Concrete

Description

Drains & Upper Parts with Rectangular Top (Channels) : Slot channel - No membrane : 673AK

• The channel is made from 2 mm acid-pickled stainless steel.
• Designed in accordance with standard EN1253.
• The longitudinal fall is 0.6% and the cross fall corresponds to 130°.
• With outlet box
• Floor: concrete, tiled and resin
• No membrane
• Stainless steel: AISI304/EN1.4301
• Slot Width: 20mm with a drain 260x260 mm
• Lengt: 1000 mm up to 6000 mm system

Select the product(s) based on outside (visible) dimension, flow rate, and / or item number, to upload in your project.

• Horizontal and Vertical outlet, height adjustable, 75 and 110 mm
• With and without membrane and for concrete, tiled and resin floors.
• The product is made from 2 mm acid-pickled stainless steel.
• 4 Grating options load class up to 10.000 kg
• Designed in accordance with EN1253.

Key Component Features:

• User selectable Channel
• User selectable Gratings
• User selectable Lower Parts
• User selectable Watertrap
• User selectable Filter Basket
• 360 degree Lower Part
• Height adjustment
• Automated product codes
• Pre-selected concrete cut out / base concrete slab option for installation purpose

Products : 673AK
