F614B, F624B, F628B - Fully-lugged Bare Shaft Butterfly Valves – Ductile Iron (2026 Onwards)

by Crane Fluid Systems

Download Add to collection

Description

Robust Ductile Iron valve body for long life service

Valve body fully-lugged for secure installation

The anti-blow out stem design provides a safe and secure operation

Fully bonded epoxy paint system for superior corrosion resistance

Suitable for applications where Level 3 C3 (Medium) corrosion protection is required

Maintenance free valve design, reducing downtime

Valves are suitable for use with flanges conforming to BS EN 1092-2 PN16

Valve to BS EN593

420 Stainless Steel Shafts for superior strength

Object Data

1 Revision

Last Updated

26/03/2026

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

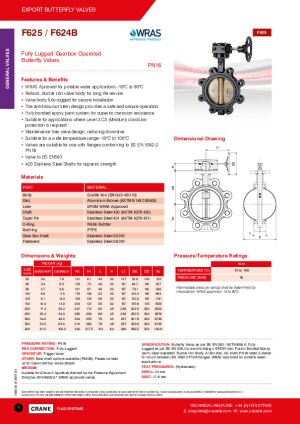

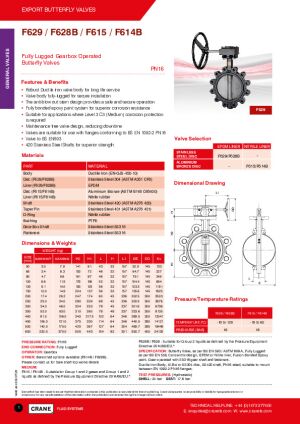

Product Data Sheet

Object metadata

_AuthorAM
_Authorized ByBS
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/cranefs-f614b/document/object-user-guide
0 K90.00 mm
0 P180.00 mm
284.00 mm
383.00 mm
443.00 mm
567.50 mm
625.00 mm
Accessibility Performancen/a
Angle 122.50 °
Angle 222.50 °
Angle 322.50 °
Assembly CodeD20
Asset TypeFixed
BIM Object NameCraneFS_ButterflyValve_FullyLuggedBareshaft_(F614B-F624B-F628B)_2026Onwards
Classification NameUniclass 2015
Classification ValuePr_65_54_95_08
Code Performancen/a
Colorn/a
Connection Size98.00 mm
Connection Size Radius49.00 mm
Constituentsn/a
Created Byenquiries@cranefs.com
Created On2025-08-10T:09:00:00
D15.77 mm
DD145.00 mm
Default Elevation0.00 mm
DescriptionF614B / F624B / F628B - Fully-Lugged Bareshaft Butterfly Valves - Ductile Iron (2026 Onwards)
Disc MaterialCrane - Metal - Stainless Steel
DN100
Documentation Certificateswww.bimstore.co/products/cranefs-f614b/document/product-certificates

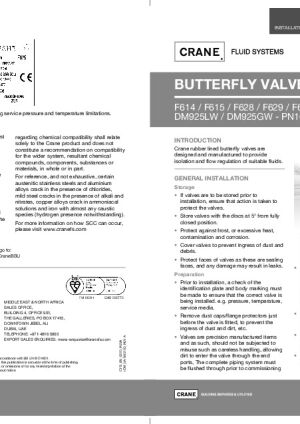

Documentation Installation Guidewww.bimstore.co/products/cranefs-f614b/document/installation-guide
Documentation Literaturewww.bimstore.co/products/cranefs-f614b/document/product-literature
Documentation Maintenancewww.bimstore.co/products/cranefs-f614b/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/cranefs-f614b/document/technical-data-sheet
Duration UnitYear
E104.40 mm
Expected Life0
Featuresn/a
Finishn/a
G104.40 mm
Graden/a
H32.00 mm
h54.00 mm
H1106.00 mm
H2179.00 mm
Half 0 P90.00 mm
Halfn 1-m8.00 mm
Handwheel MaterialCrane - Metal - Iron - Ductile Epoxy Paint
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.CHECK
Inner Radius49.00 mm
J45.00 mm
K Coefficient694
KeynoteS
L52.00 mm
L1157.00 mm
Loss MethodK Coefficient
Lug Hole Offset90.00 mm
Lug Hole Radius8.00 mm
Lug Inner Radius78.00 mm
Lug Outer Radius15.00 mm
ManufacturerCrane FS
Manufacturer NameCrane FS
Materialn/a
Mid Radius50.00 mm
ModelF614B / F624B / F628B - Fully-Lugged Bareshaft Butterfly Valves - Ductile Iron (2026 Onwards)
Model NumberF614B
Model ReferenceF614B / F624B / F628B - Fully-Lugged Bareshaft Butterfly Valves - Ductile Iron (2026 Onwards)
n 1-m16.00 mm
NBS DescriptionButterfly valves
NBS Noten/a
NBS Object NameCrane FS - Butterfly valves
NBS Office Master Tagn/a
NBS Reference90-10-90/332
Nominal Depth52.00 mm
Nominal Height389.50 mm
Nominal Length247.00 mm
Number Of Lugs8
Outer Radius78.00 mm
Production Year2026
Referenced Standardn/a
Replacement Costn/a
Shapen/a
SizeDN100
Spare Partsn/a
Symbol Length58.80 mm
Type CommentsF614B / F624B / F628B - Fully-Lugged Bareshaft Butterfly Valves - Ductile Iron (2026 Onwards)
Type NameF614B / F624B / F628B - Fully-Lugged Bareshaft Butterfly Valves - Ductile Iron (2026 Onwards)
URLwww.cranefs.com/
Valve MaterialCrane - Metal - Iron - Ductile Epoxy Paint
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborenquiries@cranefs.com
Warranty Guarantor Partsenquiries@cranefs.com
