D130W - Single Non-Return Valve - Cast Iron

by Crane Fluid Systems

Download Add to collection

Description

Features & Benefits:

Spring loaded axially guided disc
Positive non-slam shut-off
WRAS approved for use with wholesome (potable) water up to 85°C
Resilient seat

Object Data

1 Revision

Last Updated

03/05/2022

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

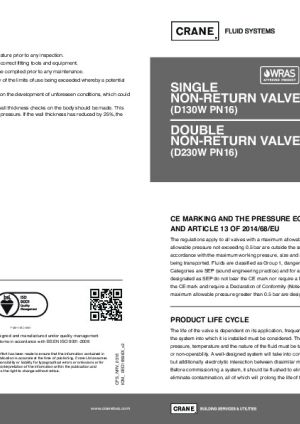

Installation Guide

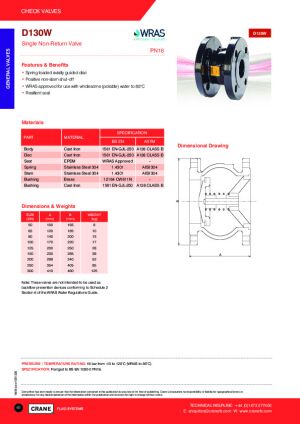

Product Literature

Product Data Sheet

Object metadata

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
A93.00 mm
Accessibility Performancen/a
Assembly CodeD20
Asset TypeFixed
B181.00 mm
BIM Object NameCraneFS_SingleNonReturnValve_D130W
BodyCast Iron BS EN 1561 EN-GJL-250
Body Radius64.00 mm
Bolt Hole Diameter19.00 mm
Bolt Holes8
BushingBrass BS EN 12164 CW611N
Classification NameUniclass 2015
Classification ValuePr_65_54_95_11
Code Performancen/a
Colorn/a
Connection Size100.00 mm
Connection Size Radius50.00 mm
Constituentsn/a
Created Byenquiries@cranefs.com
Created On2022-03-01 T:09:00:00
D220.00 mm
DescriptionSpring loaded axially guided disc; Positive non-slam shut-off; WRAS approved for use with wholesome (potable) water to 85°C; Resilient seat.
DiscCast Iron BS EN 1561 EN-GJL-250
Disc TrimEPDM (max. temp. 120°C)
Documentation Certificateswww.bimstore.co/products/d130w-single-non-return-valve-cast-iron-1/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/d130w-single-non-return-valve-cast-iron-1/document/installation-guide
Documentation Literaturewww.bimstore.co/products/d130w-single-non-return-valve-cast-iron-1/document/product-literature
Documentation Maintenancewww.bimstore.co/products/d130w-single-non-return-valve-cast-iron-1/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/d130w-single-non-return-valve-cast-iron-1/document/technical-data-sheet
Duration UnitYear
Expected Life0
Featuresn/a
Finishn/a
Flange Thickness19.00 mm
Graden/a
GuideCast Iron BS EN 1561 EN-GJL-250
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.CHECK
K180.00 mm
K Coefficient0
K290.00 mm
KeynoteS
L170.00 mm
Loss MethodK Coefficient
ManufacturerCrane FS
Manufacturer NameCrane FS
Materialn/a
ModelD130W
Model NumberD130W
Model ReferenceD130W - Single Non-Retrun Valve
NBS DescriptionCast iron check valves
NBS Noten/a
NBS Object NameCrane FS - Cast iron check valves
NBS Office Master Tagn/a
NBS Reference90-10-90/348
Nominal Depth220.00 mm
Nominal Height220.00 mm
Nominal Length170.00 mm
Offset12.00 mm
Pressure Temperature Rating16 bar from -10 to 120°C (WRAS to 85°C)
Production Year2022
Raised Face Diameter156.00 mm
Referenced Standardn/a
Replacement Costn/a
Shapen/a
SizeDN100
Spare Partsn/a
Specification NotesFlanged to BS EN 1092-2 PN16
SpringStainless Steel SS304
StemStainless Steel SS304
Type CommentsD130W - Single Non-Retrun Valve
Type NameD130W - Single Non-Retrun Valve
URLwww.cranefs.com/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborenquiries@cranefs.com
Warranty Guarantor Partsenquiries@cranefs.com
Weight17.00 kg

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
