Fully Reversible Window (FRW4)

by Deceuninck

Download Add to collection

Description

The Deceuninck Fully Reversible Window is a premium solution tailored for architects and specifiers working on high-rise residential, commercial, or refurbishment projects where functionality, safety, and ease of maintenance are critical. Designed with a 180-degree reversible action, this window allows the sash to rotate fully outside the frame, enabling safe and effortless cleaning from inside the building—without intruding into the interior space.

Key features:

70mm ‘flush’ welded system
Unique “arrow foot” wool-pile weathersealing, easy to install, perfect for retro fitting
Thermal reinforcement option for the outer frame (to achieve WER A)
PAS24
Air Permeability - Class A4 600 Pa
Water Tightness – (special) Class 9A E1050 Pa
Wind Resistance – (special) Class A5 AE2400 Pa
Double glazed U value 1.3, triple glazed U value 1.0

Object Data

1 Revision

Last Updated

10/03/2025

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

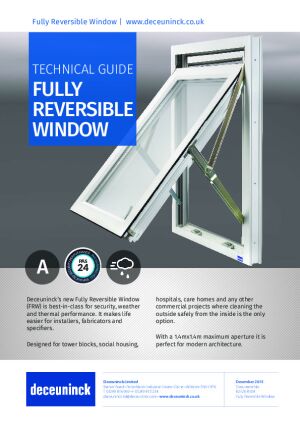

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorDeceuninck Ltd
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bydeceuninck.ltd@deceuninck.com
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/8ee0c041-fc25-4f5d-aa30-ccaa1fe805fb/document/object-user-guide
Accessibility Performancen/a
Accessoriesn/a
Accessory OptionsClip fit drip rail, secondary wool-pile weather seal
Acoustic Rating32-43 dB
Analytic Construction<None>
Antiligature Standardn/a
Asset TypeFixed
Beam Radiation Transmittance0
BIM Object NameDeceuninckLtd_PVCUWndwUnits_FullyReversibleWindow_FRW4
British Fenestration Rating Council Window Energy RatingA+ to C
Classification NameUniclass2015
Classification ValuePr_30_59_98_92
Code PerformanceBS 6375, BS 7412, BS EN 12608, PAS24
Colorn/a
ConfigurationDual fully reversible window and fixed bottom lights
Constituentsn/a
Construction TypePLASTIC
Created Bydeceuninck.ltd@deceuninck.com
Created On2025-02-27T09:00:00
Define Thermal Properties bySchematic Type
DescriptionDual fully reversible window and fixed bottom lights
Documentation Certificateswww.bimstore.co/products/8ee0c041-fc25-4f5d-aa30-ccaa1fe805fb/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/8ee0c041-fc25-4f5d-aa30-ccaa1fe805fb/document/installation-guide
Documentation Literaturewww.bimstore.co/products/8ee0c041-fc25-4f5d-aa30-ccaa1fe805fb/document/product-literature
Documentation Maintenancewww.bimstore.co/products/8ee0c041-fc25-4f5d-aa30-ccaa1fe805fb/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/8ee0c041-fc25-4f5d-aa30-ccaa1fe805fb/document/technical-data-sheet
Duration UnitYears
Environmental Product DeclarationEPD-QKE-20150313-IBG1-EN
Expected Life35
Featuresn/a
Fill GasArgon
Finishn/a
Fire Egressn/a
Fire Egress OptionsEmergency egress is an inherent characteristic of tilt & turn style hardware
Fire Ratingn/a
Fixing FeaturesThrough frame fasteners, Fixing lug
Frame/Mullion MaterialNBS_Concept
Frame Colour OptionsWhite - RAL 9016 (standard), Laminated foil, Decoroc colour (RAL)
Frame Depth70.00 mm
Frame ProfileHollow PVC-U profile manufactured in accordance with BS EN 12608
Frame ReinforcementGalvanised steel or thermal reinforcement consisting of a foam core, steel wire encapsulated within a recycled PVC skin
Frame Size Options60 mm
Frame To Glazing Ratio Maximumn/a
Frame Ventilator Optionsn/a
Frame Width60.00 mm
Glass Colourn/a
Glass Thickness 14.00 mm
Glass Thickness 24.00 mm
Glazing Area Fraction0
Glazing Or Infill Beading Location OptionsInternal
Glazing Or Infill Beading Type OptionsChamfered 28 mm, Chamfered 40 mm, Decorative 28 mm, Decorative 40 mm
Glazing Or Infill Clips Or Tapen/a
Glazing Or Infill Compositionn/a
Glazing Or Infill Drained And Vented RebateRequired
Glazing Or Infill Requirement OptionsProvide internal beads, Factory glazing, Site glazing by others
Glazing Or Infill Requirementsn/a
Glazing Or Infill Thickness Options5-42 mm
Glazing Panel MaterialNBS_Glass_Triple
Graden/a
Hardware Additional Hardwaren/a
Hardware Additional Hardware OptionsIntegral restrictor within standard hinge
Hardware Hinge OptionsPeder Nielson, Yale
Hardware Hingesn/a
Hardware Sashesn/a
Hardware Securing Device OptionsMaco RAIL espag, Roto TSL espag
Hardware Securing Devicesn/a
Height1000.00 mm
Ifc Export AsIfcWindowType
Ifc Export TypeWINDOW
Infiltration0.02
Is CoatedYes
Is ExternalYes
Is LaminatedNo
Is TemperedNo
Is WiredNo
Load Bearing Capacity Of Safety Device OptionsPeder Nielson (350N), Yale (350N
Load Bearing Capacity Of Safety Devicesn/a
Manufacturerdeceuninck.ltd@deceuninck.com
Manufacturer NameDeceuninck Ltd
MaterialPVC-U
ModelFully Reversible Window FRW4
Model Numbern/a
Model ReferenceFully Reversible Window FRW4
Mullion Offset495.00 mm
NBS DescriptionPVC-U window units
NBS Noten/a
NBS Object NameDeceuninck Ltd - PVC-U window units
NBS Office Master Tagn/a
NBS Reference45-25-99/330
Nominal Depth1000.00 mm
Nominal Height1000.00 mm
Nominal Length0.00 mm
OperationUSERDEFINED
Operation And Strength Characteristics RequirementsOperating forces Class 1, Resistance to static torsion Class 3, Racking Class 3
Operation Electrical Supplyn/a
Operation TypeManual
Production Year2025
Referencen/a
Referenced Standardn/a
Reflectivity0
Replacement Costn/a
Rough Height0.00 mm
Rough Width0.00 mm
Security RatingPAS 24
Shapen/a
Sill Height Default800.00 mm
Sill MaterialNBS_Concept
Sill Optionsn/a
Sill Type 150mmNBS_DeceuninckLtd_ExtExtnsnSls_150-180mm : 150mm
Sill Type 180mmNBS_DeceuninckLtd_ExtExtnsnSls_150-180mm : 180mm
Sill Type 250mmNBS_DeceuninckLtd_ExtExtnsnSls_250mm : 250mm
Sill Type 95mmNBS_DeceuninckLtd_ExtExtnsnSls_95mm : 95mm
Sill Type NoneNBS_DeceuninckLtd_ExtExtnsnSls_None : None
Sizen/a
Smoke StopNo
Solar Heat Gain Transmittance0
Spare Partsdeceuninck.ltd@deceuninck.com
Structural Opening Height1000.00 mm
Structural Opening Width1000.00 mm
Structural Tolerance Head5.00 mm
Structural Tolerance Jamb5.00 mm
Structural Tolerance Sill3.00 mm
Thermal Transmittance0.96
Thermal Transmittance Summer0
Thermal Transmittance Winter0
Third Party AccreditationBSI Kitemark
Translucency0
Transom Mullion Joint OptionsWelded
Transom Mullion Size Options86mm
Transom Offset500.00 mm
Type CommentsFully Reversible Window FRW4
Type NameFully Reversible Window FRW4
URLwww.deceuninck.co.uk/
Ventilation Background Ventilationn/a
Ventilation Background Ventilation OptionsProprietary ventilation device
Wall ClosureBoth
Warranty DescriptionManufacturer warranty
Warranty Duration Laborn/a
Warranty Duration Parts10
Warranty Duration UnitYears
Warranty Guarantor Laborn/a
Warranty Guarantor Partsn/a
Weather Performance Air PermeabilityClass 4 (600 Pa)
Weather Performance Resistance To Wind LoadClass AE (2400 Pa)
Weather Performance UK Exposure CategoryClass AE (2400 Pa)
Weather Performance WatertightnessClass 9A (600 Pa)
WeathersealHigh-performance integral multifunctional seal/ gasket, Primary wool pile (optional), Secondary wool pile (optional)
Width1000.00 mm

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
