Heritage 2800 Tilt and Turn Window (TT3)

by Deceuninck

Download Add to collection

Description

The Deceuninck 2800 Tilt & Turn Window is a highly adaptable system designed to meet the functional and aesthetic demands of modern architectural projects. Its dual-action mechanism allows the sash to tilt inwards at the top for secure, draft-free ventilation—ideal for residential and commercial settings where air quality and occupant comfort are a priority. For full access and ease of maintenance, the window also swings inwards from the side, making it particularly suitable for multi-storey buildings or areas with restricted external access. This inward-opening design enhances safety, simplifies cleaning, and offers superior control over airflow.

Key features:

Doc L compliant.
Doc Q compliant.
Kitemark Certified.
Accommodate a large range of IGU thicknesses for commercial specification.
Energy ratings
As high as A+ with Triple Glazing
As high as A with Double Glazing
U-Value
As low as 0.91 with triple glazing
As low as 1.2 with double glazing

Object Data

1 Revision

Last Updated

10/03/2025

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Available

_AuthorDeceuninck Ltd
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bydeceuninck.ltd@deceuninck.com
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/72577a77-5a11-4b78-a856-76d9706d26b7/document/object-user-guide
Accessibility Performancen/a
Accessoriesn/a
Accessory OptionsHead drip, weather bar, architrave finishing trims
Acoustic Rating32-43 dB
Analytic Construction<None>
Antiligature Standardn/a
Asset TypeFixed
Beam Radiation Transmittance0
BIM Object NameDeceuninckLtd_PVCUWndwUnits_Heritage2800TiltandTurnWindow_TT3
British Fenestration Rating Council Window Energy RatingA+ to C
Classification NameUniclass2015
Classification ValuePr_30_59_98_92
Code PerformanceBS 6375, BS 7412, BS EN 12608, PAS24
Colorn/a
ConfigurationDual tilt and turn opening lights
Constituentsn/a
Construction TypePLASTIC
Created Bydeceuninck.ltd@deceuninck.com
Created On2025-02-27T09:00:00
Define Thermal Properties bySchematic Type
DescriptionDual tilt and turn opening lights
Documentation Certificateswww.bimstore.co/products/72577a77-5a11-4b78-a856-76d9706d26b7/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/72577a77-5a11-4b78-a856-76d9706d26b7/document/installation-guide
Documentation Literaturewww.bimstore.co/products/72577a77-5a11-4b78-a856-76d9706d26b7/document/product-literature
Documentation Maintenancewww.bimstore.co/products/72577a77-5a11-4b78-a856-76d9706d26b7/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/72577a77-5a11-4b78-a856-76d9706d26b7/document/technical-data-sheet
Duration UnitYears
Environmental Product DeclarationEPD-QKE-20150313-IBG1-EN
Expected Life35
Featuresn/a
Fill GasArgon
Finishn/a
Fire Egressn/a
Fire Egress OptionsEmergency egress is an inherent characteristic of tilt & turn style hardware
Fire Ratingn/a
Fixing FeaturesThrough frame fasteners, Fixing lug
Frame/Mullion MaterialNBS_Concept
Frame Colour OptionsWhite - RAL 9016 (standard), Laminated foil, Decoroc colour (RAL)
Frame Depth70.00 mm
Frame ProfileHollow PVC-U decorative profile manufactured in accordance with BS EN 12608
Frame ReinforcementGalvanized steel
Frame Size Options55 mm, 70 mm, 85 mm
Frame To Glazing Ratio Maximumn/a
Frame Ventilator OptionsProprietary ventilation device
Frame Width70.00 mm
Glass Colourn/a
Glass Layers2
Glass Thickness 14.00 mm
Glass Thickness 24.00 mm
Glass Thickness 30.00 mm
Glazing Area Fraction0
Glazing Or Infill Beading Location OptionsInternal (standard)
Glazing Or Infill Beading Type OptionsDecorative 28mm (standard), other styles available for other glazing thicknesses
Glazing Or Infill Clips Or Tapen/a
Glazing Or Infill Compositionn/a
Glazing Or Infill Drained And Vented RebateRequired
Glazing Or Infill Requirement OptionsProvide internal beads, Factory glazing, Site glazing by others
Glazing Or Infill Requirementsn/a
Glazing Or Infill Thickness Options3-40 mm
Glazing Panel MaterialNBS_Glass_Triple
Graden/a
Hardware Additional Hardwaren/a
Hardware Additional Hardware Optionsn/a
Hardware Hinge OptionsMaco Multi-Trend, Maco Multi-Matic, Segenia Favorit, Roto Designo
Hardware Hingesn/a
Hardware Sashesn/a
Hardware Securing Device OptionsMaco Multi-Trend, Maco Multi-Matic, Segenia Favorit, Roto Designo
Hardware Securing Devicesn/a
Height1000.00 mm
Ifc Export AsIfcWindowType
Ifc Export TypeWINDOW
Infiltration0.41
Is CoatedYes
Is ExternalYes
Is LaminatedNo
Is TemperedNo
Is WiredNo
Load Bearing Capacity Of Safety Device OptionsMaco Multi-Trend (tilt mode, 350N), Maco Multi-Matic (tilt mode, 350N), Segenia Favorit (tilt mode, 350N), Roto Designo (tilt mode, 350N)
Load Bearing Capacity Of Safety Devicesn/a
Manufacturerdeceuninck.ltd@deceuninck.com
Manufacturer NameDeceuninck Ltd
MaterialPVC-U
ModelHeritage 2800 Tilt and Turn Window - TT3
Model Numbern/a
Model ReferenceHeritage 2800 Tilt and Turn Window - TT3
Mullion Offset495.00 mm
NBS DescriptionPVC-U window units
NBS Noten/a
NBS Object NameDeceuninck Ltd - PVC-U window units
NBS Office Master Tagn/a
NBS Reference45-25-99/330
Nominal Depth1000.00 mm
Nominal Height1000.00 mm
Nominal Length0.00 mm
OperationDOUBLE_PANEL_VERTICAL
Operation And Strength Characteristics RequirementsOperating forces Class 1, Resistance to static torsion Class 3, Racking Class 3
Operation Electrical Supplyn/a
Operation TypeManual
Production Year2025
Referencen/a
Referenced Standardn/a
Reflectivity0
Replacement Costn/a
Security RatingPAS 24
Shapen/a
Sill Height Default800.00 mm
Sill MaterialNBS_Concept
Sill Options3337 - 95 mm sill, 3338 - 150 mm sill, 3339 - 180 mm sill, 367 - 250 mm sill
Sill Type 150mmNBS_DeceuninckLtd_ExtExtnsnSls_150-180mm : 150mm
Sill Type 180mmNBS_DeceuninckLtd_ExtExtnsnSls_150-180mm : 180mm
Sill Type 250mmNBS_DeceuninckLtd_ExtExtnsnSls_250mm : 250mm
Sill Type 95mmNBS_DeceuninckLtd_ExtExtnsnSls_95mm : 95mm
Sill Type NoneNBS_DeceuninckLtd_ExtExtnsnSls_None : None
Sizen/a
Smoke StopNo
Solar Heat Gain Transmittance0
Spare Partsdeceuninck.ltd@deceuninck.com
Structural Opening Height1000.00 mm
Structural Opening Width1000.00 mm
Structural Tolerance Head5.00 mm
Structural Tolerance Jamb5.00 mm
Structural Tolerance Sill3.00 mm
Thermal Transmittance0.97
Thermal Transmittance Summer0
Thermal Transmittance Winter0
Third Party AccreditationBSI Kitemark
Translucency0
Transom Mullion Joint OptionsWelded (standard), Mechanical
Transom Mullion Size Options70 mm, 85 mm, 110 mm
Type CommentsHeritage 2800 Tilt and Turn Window - TT3
Type NameHeritage 2800 Tilt and Turn Window - TT3
URLwww.deceuninck.co.uk/
Ventilation Background Ventilationn/a
Ventilation Background Ventilation OptionsProprietary ventilation device
Wall ClosureBoth
Warranty DescriptionManufacturer warranty
Warranty Duration Laborn/a
Warranty Duration Parts10
Warranty Duration UnitYears
Warranty Guarantor Laborn/a
Warranty Guarantor Partsn/a
Weather Performance Air PermeabilityClass 4 (600 Pa)
Weather Performance Resistance To Wind LoadClass A5 (2000 Pa)
Weather Performance UK Exposure CategoryClass A5 (2000 Pa)
Weather Performance WatertightnessClass 8A (450 Pa)
WeathersealHigh-performance integral multifunctional seal/ gasket
Width1000.00 mm

Sustainability & Environmental Data

Approved Sustainability Data from an EPD

This data is supplied by the manufacturer and certified by an approved third party.

Biogenic CO2e (A1-A3,B1-B5,C1-C4) 9.863 kg
Total CO2e (Fossil) 173.94 kg
Manufacturing (A1-A3) 80 kg
Transport to Site (A4) 0.397 kg
On-Site Installation (A5) 1.48 kg
Use & Maintenance (B1-B5) 95.45 kg
End of Life (C1,C3,C4) 5.89 kg
Recycled Content 21 %
Recyclable Content 59 %
Re-use Potential 0 %
Energy Recovery Possibility 35 %
Water Use 998 L
Ozone Depletion Potential 1.34E-5 mg CFC-11eq
Expiry3rd May 2022 - 2nd May 2027

Approved Sustainability Data from an EPD

This data is supplied by the manufacturer and certified by an approved third party.

Biogenic CO2e (A1-A3,B1-B5,C1-C4) 8.94 kg
Total CO2e (Fossil) 174.7 kg
Manufacturing (A1-A3) 96.3 kg
Transport to Site (A4) 0.487 kg
On-Site Installation (A5) 1.48 kg
Use & Maintenance (B1-B5) 78.36 kg
End of Life (C1,C3,C4) 6.24 kg
Recycled Content 21 %
Recyclable Content 59 %
Re-use Potential 0 %
Energy Recovery Possibility 35 %
Water Use 1090 L
Ozone Depletion Potential 1.38E-5 mg CFC-11eq
Expiry15th Sep 2022 - 14th Sep 2027

Bimstore on 31 July 2025

Be the first to write a comment...

Heritage 2800 Tilt and Turn Window (TT3)

Description

Object Data

Last Updated

Available Software

BS1192:4

BSB

EPD

Accompanying literature

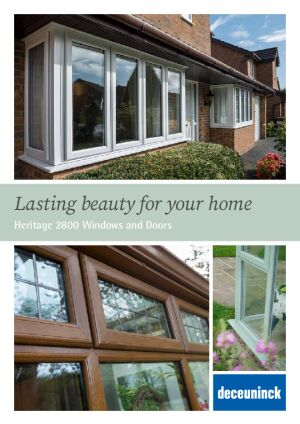

Product Literature

Product Data Sheet

Product Literature

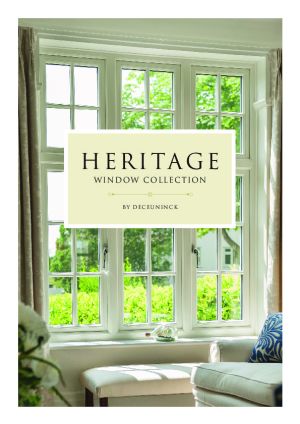

Product Literature

Object metadata

Sustainability & Environmental Data

Approved Sustainability Data from an EPD

Approved Sustainability Data from an EPD

Environmental Product Declarations

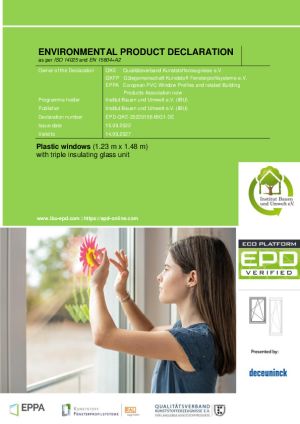

Environmental Product Declaration (EPD)

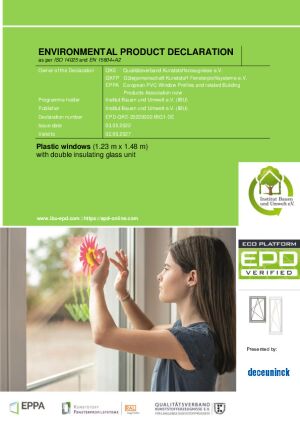

Environmental Product Declaration (EPD)
