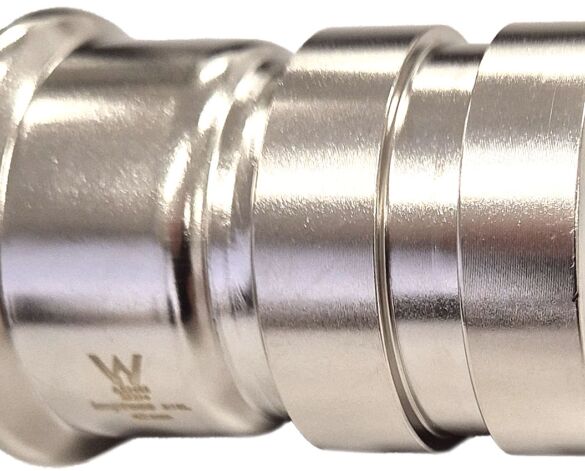

Express - Roll Groove Adaptor

Description

Express® 304L high-quality stainless steel press fit system is an advanced, weld-free pipe system used for transporting fluids and gases. Offering safer, smarter and faster installation, the Express® pipe system delivers superior results in handling fuel oils, fire systems, gas and biogas, potable and non-potable water, among many other applications and services.

This download includes the following size variations: EXSRGA2833.7, EXSRGA3542.4, EXSRGA4248.3, EXSRGA5460.3, EXSRGA7676.1, EXSRGA8988.9, EXSRGA108114.2

Object Data

1 Revision

Last Updated

05/05/2025

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

_AuthorIH
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstoreoz.au/products/d0a58719-f5a0-436b-acab-0e85c9716637/document/object-user-guide
Accessibility Performancen/a
Asset TypeFixed
BIM Object NameIbex_Express_RollGrooveAdaptor
Classification NameUniclass2015
Classification ValuePr_65_52_63_79
Code Performancen/a
ColorSilver
Constituentsn/a
Created Bysales@ibexaustralia.com.au
Created On2025-04-07T09:00:00
Default Elevation0 mm
DescriptionCircular Pipe
Documentation Certificateswww.bimstoreoz.au/products/d0a58719-f5a0-436b-acab-0e85c9716637/document/product-certificates
Documentation Installation Guidewww.bimstoreoz.au/products/d0a58719-f5a0-436b-acab-0e85c9716637/document/installation-guide
Documentation Literaturewww.bimstoreoz.au/products/d0a58719-f5a0-436b-acab-0e85c9716637/document/product-literature
Documentation Maintenancewww.bimstoreoz.au/products/d0a58719-f5a0-436b-acab-0e85c9716637/document/maintenance-information
Documentation Technicalwww.bimstoreoz.au/products/d0a58719-f5a0-436b-acab-0e85c9716637/document/technical-data-sheet
Duration UnitYears
Expected Life0
FeaturesPressure up to 40 bar, temperature up to 200°C, range of O-Rings suitable for special applications, quick & easy to install.
Finishn/a
Graden/a
Ifc Export AsIfcPipeFittingType
Ifc Export TypeTRANSITION
ManufacturerIbex
Manufacturer NameIbex
Material304L Stainless Steel
ModelROLL GROOVE ADAPTOR
Model NumberEXSRGA
Model ReferenceROLL GROOVE ADAPTOR
NBS DescriptionStainless steel pipe fittings
NBS Noten/a
NBS Object NameIbex - Stainless steel pipe fittings
NBS Office Master Tagn/a
NBS Reference90-10-65/400
Nominal Depth0 mm
Nominal Height0 mm
Nominal Length0 mm
Primary MaterialIbex - 304 L Stainless Steel
Production Year2025
Referenced StandardAS4041 2006 | AS1940 | ActivFire®
Replacement Costn/a
Shapen/a
Size15 mm to 108 mm
Spare Partsn/a
Type CommentsROLL GROOVE ADAPTOR - EXSRGA
Type NameROLL GROOVE ADAPTOR - EXSRGA
URLwww.ibexaustralia.com.au/Express/
Warranty Description30 year guarantee on press fit connection tightness
Warranty Duration Labor0
Warranty Duration Parts30
Warranty Duration UnitYears
Warranty Guarantor Laborsales@ibexaustralia.com.au
Warranty Guarantor Partssales@ibexaustralia.com.au
