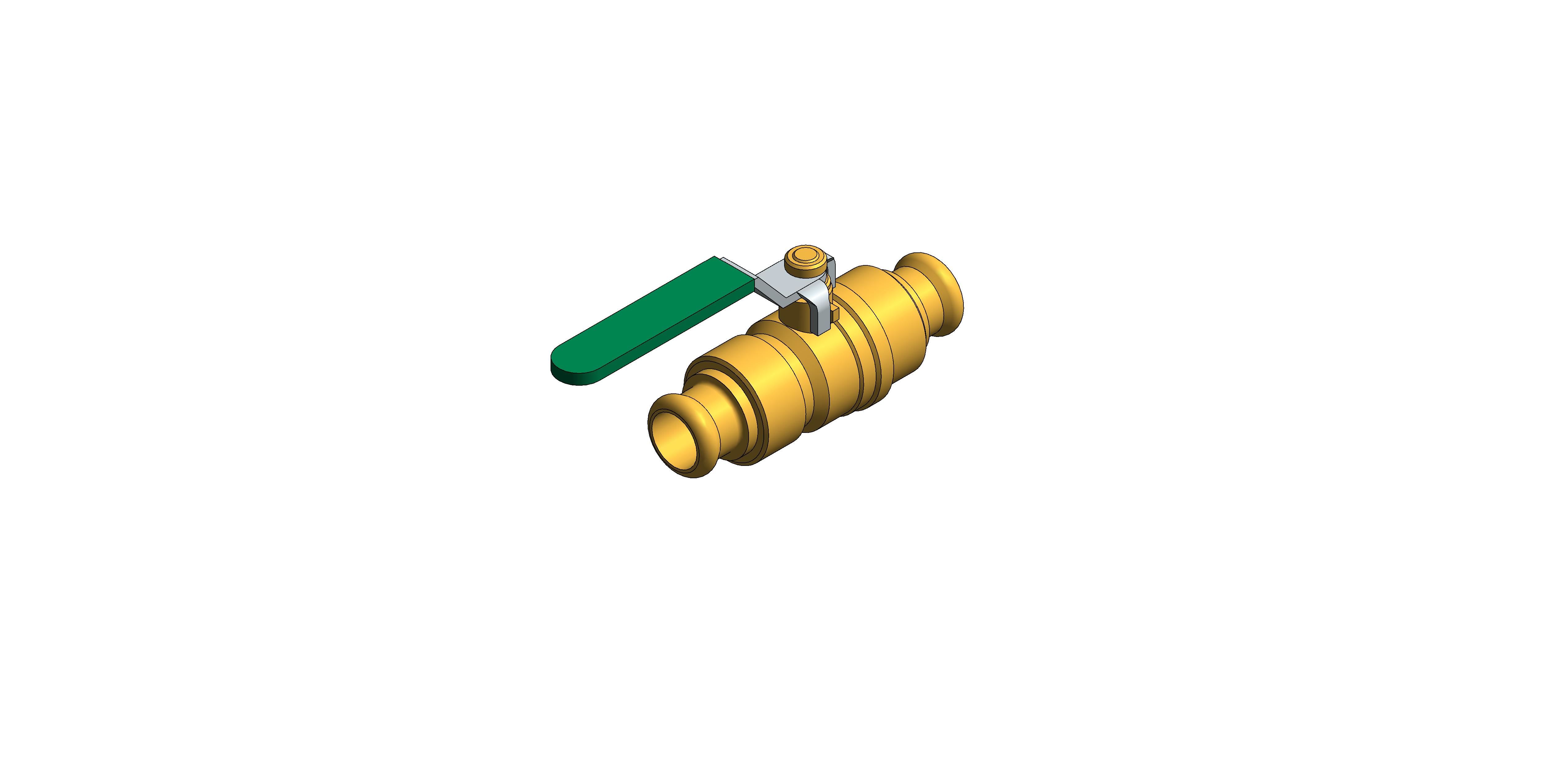

Fig. 100.PF - Press-Fit Ball Valve - DZR Brass

by Hattersley

Download Add to collection

Description

Press-Fit Ball Valve - DZR Brass

Fig. 100.PF

Features & Benefits

Ball Valve complete with Geberit Mapress connectors
Supplied as one integral unit means less joints to make on-site
The performance, exact dimensions & tolerances are known in advance

Size	15mm to 54mm
Pressure Rating	PN16
Product Material	DZR Brass
End Connections	Press-Fit

Object Data

1 Revision

Last Updated

07/10/2021

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

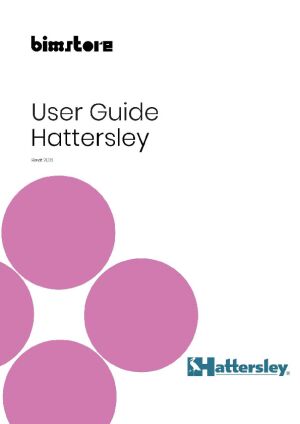

Object User Guide

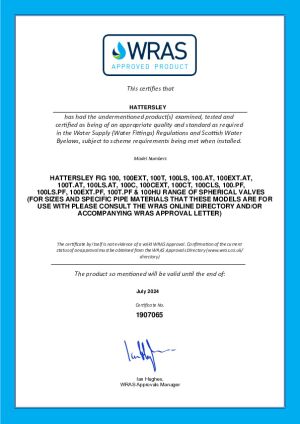

Product Certificates

Installation Guide

Maintenance Information

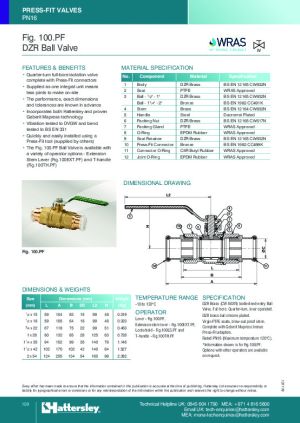

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/hattersley-fig-100-pf/document/object-user-guide

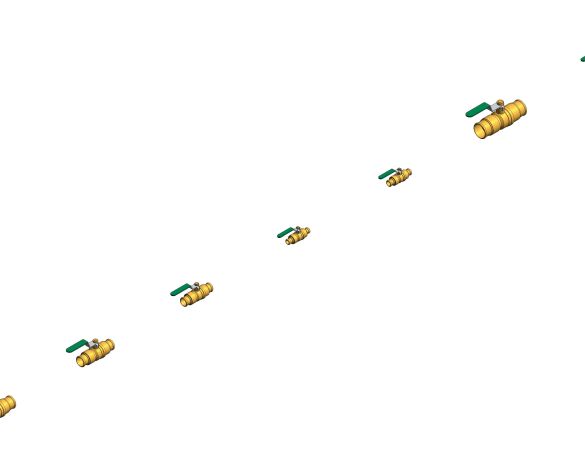

0.5"x 15mmNo
0.5"x 18mmNo
0.75"x 22mmNo
1"x 28mmNo
1.25"x 35mmNo
1.5"x 42mmYes
2"x 54mmNo
Accessibility Performancen/a
Assembly CodeD20
Asset TypeFixed
BIM Object NameHattersley_BallValve_PressFit_Fig100PF
Brake Downstand16 mm
BSYes
Classification NameUniclass 2015
Classification ValuePr_65_54_95_06
Code Performancen/a
Colorn/a
Connection Calc27 mm
Connection Radius21 mm
Connection Size42 mm
Constituentsn/a
Created Byenquiries@hattersley.com
Created On2021-08-31T:09:00:00
DescriptionFig. 100.PF - Press-Fit Ball Valve - DZR Brass
Documentation Certificateswww.bimstore.co/products/hattersley-fig-100-pf/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/hattersley-fig-100-pf/document/installation-guide
Documentation Literaturewww.bimstore.co/products/hattersley-fig-100-pf/document/product-literature
Documentation Maintenancewww.bimstore.co/products/hattersley-fig-100-pf/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/hattersley-fig-100-pf/document/technical-data-sheet
Duration UnitYear
Expected Life0
Featuresn/a
Finishn/a
Graden/a
H84 mm
Handle Calc12 mm
Handle Collar Length39 mm
Handle Downstand27 mm
Handle Length90 mm
Handle MaterialHattersley - PVC - Green
Handle Width24 mm
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.ISOLATING
K Coefficient96
KeynoteS
L102 mm
L1102 mm
L2170 mm
L3140 mm
Loss MethodK Coefficient
ManufacturerHattersley
Manufacturer NameHattersley
Materialn/a
ModelFig. 100.PF - Press-Fit Ball Valve - DZR Brass
Model NumberFig. 100.PF
Model ReferenceFig. 100.PF - Press-Fit Ball Valve - DZR Brass
NBS DescriptionBall valves
NBS Noten/a
NBS Object NameHattersley - Ball valves
NBS Office Master Tagn/a
NBS Reference90-10-90/330
Nominal Depth38 mm
Nominal Height67 mm
Nominal Length151 mm
Production Year2021
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Size1 1/2" x 42mm
Spare Partsn/a
Text Height21 mm
Type CommentsFig. 100.PF - Press-Fit Ball Valve - DZR Brass
Type NameFig. 100.PF - Press-Fit Ball Valve - DZR Brass
URLwww.hattersley.com/
Valve MaterialHattersley - Metal - Brass
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborenquiries@hattersley.com
Warranty Guarantor Partsenquiries@hattersley.com
