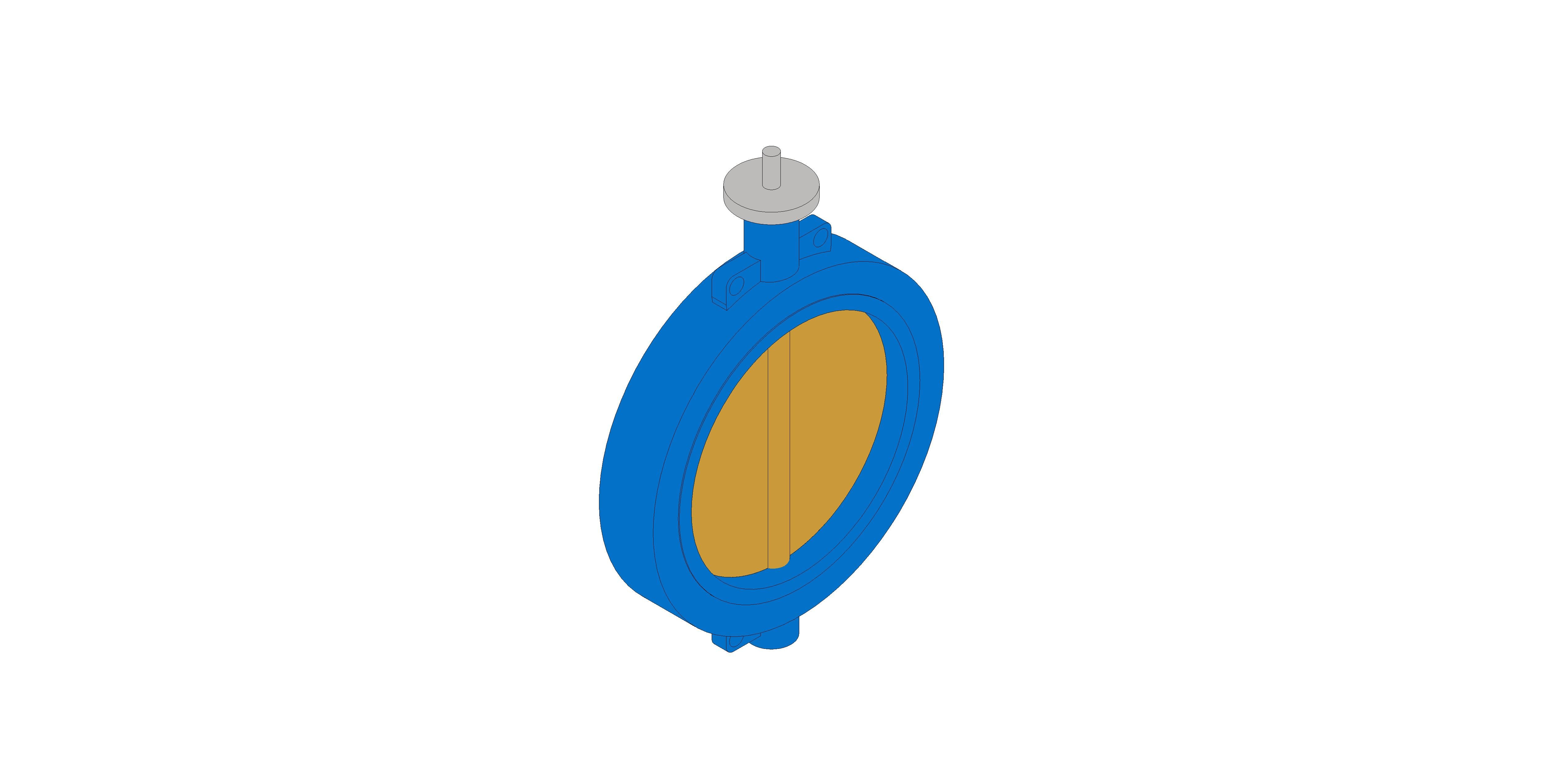

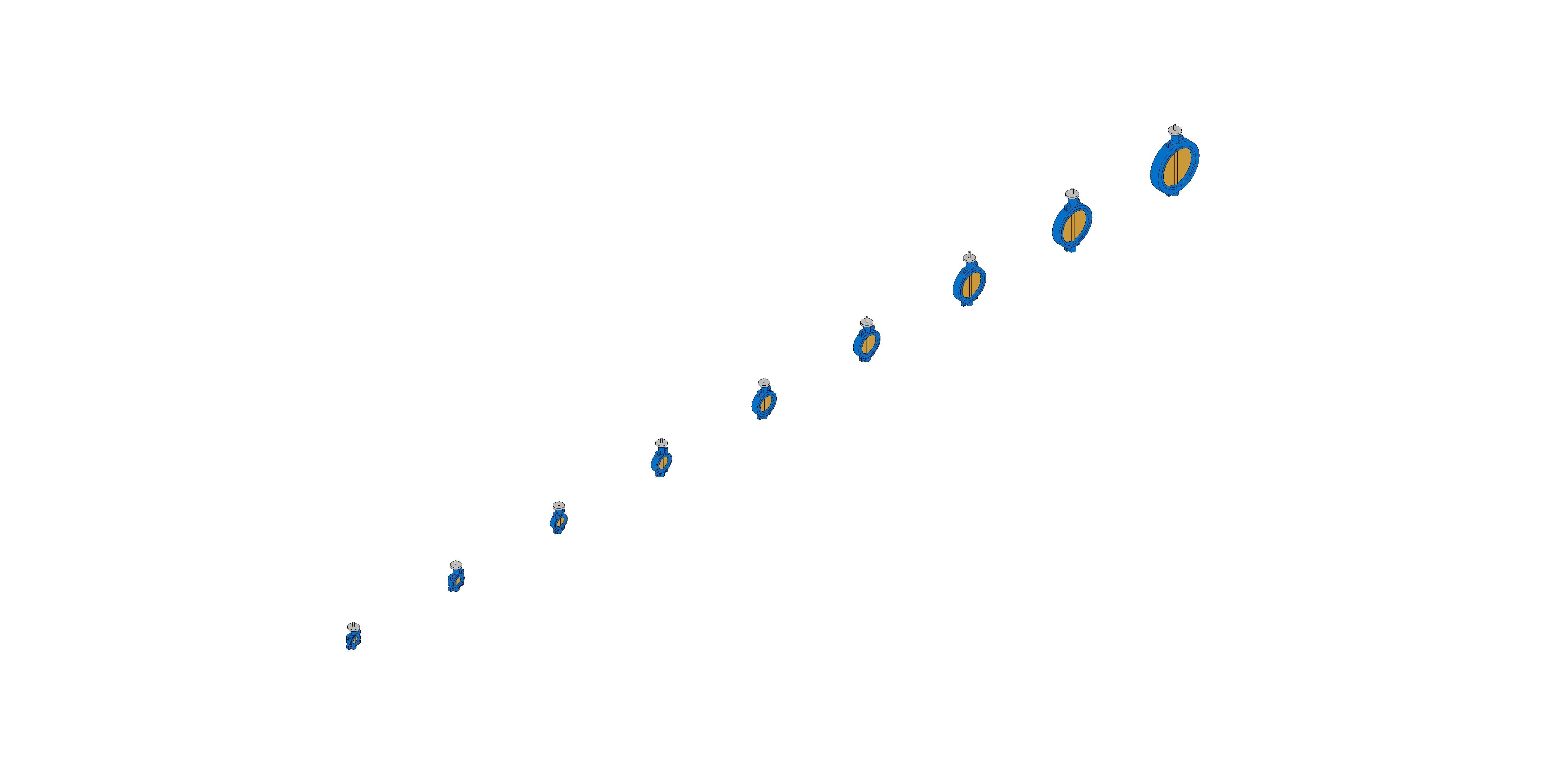

Fig. 950B - Semi-Lugged Bareshaft Butterfly Valve - Ductile Iron (2019-2025 Design)

Download Add to collection

Description

Object Data

1 Revision

Last Updated

22/03/2022

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

Product Data Sheet

Object metadata

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/hattersley-fig-950b/document/object-user-guide
17.17 mm
10202.00 mm
284.00 mm
383.00 mm
443.00 mm
570.00 mm
625.00 mm
7205.00 mm
8107.00 mm
964.20 mm
A163.00 mm
Accessibility Performancen/a
Assembly CodeD20
Asset TypeFixed
B115.00 mm
BIM Object NameHattersley_ButterflyValve_SemiLuggedGearboxOperated_Fig950B
BodyDuctile Iron ASTM A536 64-45-12 (Epoxy Paint)
BushingPTFE
C52.00 mm
Classification NameUniclass 2015
Classification ValuePr_65_54_95_08
Code Performancen/a
Colorn/a
Connection Size100.00 mm
Connection Size Radius50.00 mm
Constituentsn/a
Created Byenquiries@hattersley.com
Created On2022-03-01T:09:00:00
D32.00 mm
DescriptionFig. 950B - Semi-Lugged Gearbox Operated Butterfly Valves
DiscAluminium Bronze C954 ASTM B148
Documentation Certificateswww.bimstore.co/products/hattersley-fig-950b/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/hattersley-fig-950b/document/installation-guide
Documentation Literaturewww.bimstore.co/products/hattersley-fig-950b/document/product-literature
Documentation Maintenancewww.bimstore.co/products/hattersley-fig-950b/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/hattersley-fig-950b/document/technical-data-sheet
Duration UnitYear
E157.00 mm
Expected Life0
F150.00 mm
Featuresn/a
Finishn/a
G104.40 mm
GearboxCast Iron
Graden/a
h54.00 mm
H45.00 mm
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.CHECK
Inner Radius50.00 mm
K Coefficient512
KeynoteS
LinerEPDM (High Temperature) Temp. -10 to 130°C
Loss MethodK Coefficient
M39.00 mm
ManufacturerHattersley
Manufacturer NameHattersley
Materialn/a
Maximum Temperature-10 to 130°C
MediumSuitable for Group 2 liquids as defined by the Pressure Equipment Directive 2014/68/EU
Mid Radius68.25 mm
ModelFig. 950B - Semi-Lugged Gearbox Operated Butterfly Valves
Model NumberFig. 950B
Model ReferenceFig. 950B - Semi-Lugged Gearbox Operated Butterfly Valves
NBS DescriptionButterfly valves
NBS Noten/a
NBS Object NameHattersley - Butterfly valves
NBS Office Master Tagn/a
NBS Reference90-10-90/332
Nominal Depth52.00 mm
Nominal Height392.00 mm
Nominal Length235.00 mm
O-RingBuna-N
Outer Radius78.00 mm
Pressure Rating15.7 Bar
Production Year2022
Referenced Standardn/a
Replacement Costn/a
ShaftStainless Steel Type 410
Shapen/a
SizeDN100
Spare Partsn/a
Specification NotesGearbox operated epoxy coated Ductile Iron Body. Semi-lugged. Aluminium Bronze disc. EPDM or Nitrile liner. To suit flange connections BS EN 1092-2 PN10 or PN16 and ANSI B16.1 Class 125. Valves may be used for flow regulation. Valve design conforms to BS EN 593. Face to face conforms to BS EN 558. Bareshaft option available, F626B 50-600mm.
Symbol Length60.00 mm
Taper PinStainless Steel Type 410
Test PressuresShell: 24 Bar; Seat: 17.6 Bar
Type CommentsFig. 950B - Semi-Lugged Gearbox Operated Butterfly Valves
Type NameFig. 950B - Semi-Lugged Gearbox Operated Butterfly Valves
URLwww.hattersley.com/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborenquiries@hattersley.com
Warranty Guarantor Partsenquiries@hattersley.com
