S-CBX Boiler

by Strebel Heating Technology

Download Add to collection

Description

The S-CBX range comprises four boiler models of a highly efficient, ultra low emission wall hung condensing gas boiler offering an output range from 16kW to 151kW at 50/30 (F/R) with 85kW, 105kW, 125kW and 155kW individual boiler nominal outputs. Each boiler offers NOx emissions of less than 24 mg/kWh (Class 6) in compliance with the maximum 2 credits available under BREEAM’s New Construction 2018 1.0 Technical Manual SD5078 guidelines.

Object Data

1 Revision

Last Updated

07/03/2019

Available Software

BS1192:4

Compliant

BSB

Compliant

BS8541-2

Compliant

EPD

Not Available

Accompanying literature

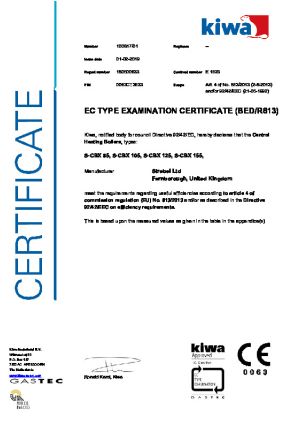

Product Certificates

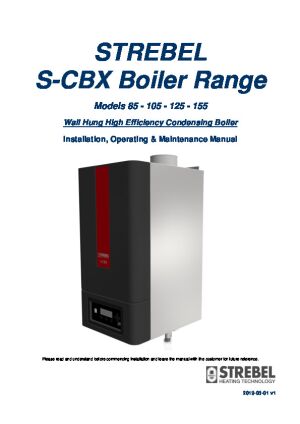

Installation Guide

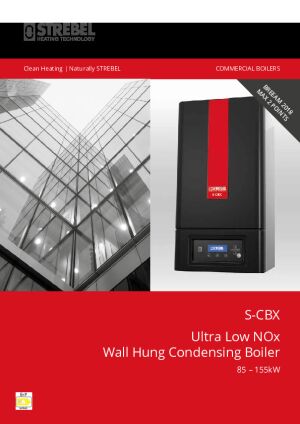

Product Literature

Maintenance Information

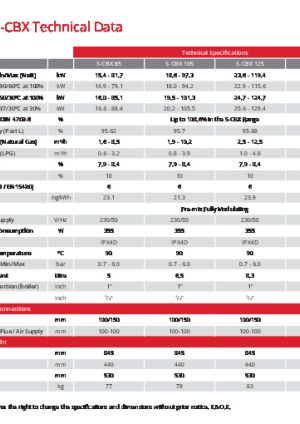

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorIan Holmes
_Authorized ByRW
_Bim Spec Guid0
_BS Bible Version15
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
Access Clearance Bottom500 mm
Access Clearance Front300 mm
Access Clearance Left50 mm
Access Clearance Rear0 mm
Access Clearance Right50 mm
Access Clearance Top300 mm
Accessibility Performancen/a
Additional Technical Detailsn/a
Air Inlet Connection Size100 mm
Assembly CodeD3020100
Asset TypeFixed
BIM Object NameStrebel_MechanicalEquiptment_Boiler_(S-CBX)
BMS LinksYes
Building Regulations Seasonal Efficiency95.7%
Burner Control TypeModulating
CE ApprovalYes
CF Connection Rad50 mm
Classification NameUniclass2015
Classification ValuePr_60_60_08_34
Code Performancen/a
ColorBlack/Red Front - Silver / Black Side
ColourBlack/Red Front - Silver / Black Side
Combust Flue Pos X206 mm
Combust Flue Pos Y120 mm
Combustion Air100 mm
Combustion Air Flow0.0 L/s
Condensate Drain Size25 mm
Condensate Drain TypeFloat Type Condensate Kit with a black flexible exit hose
ConfigurationSingle
Constituentsn/a
Control TypeOpentherm or 0-10v Controls
Created Bystrebel.co.uk/find-us/
Created On2018-01-15-T00:00:00
Depth530 mm
DescriptionThe S-CBX 105 Boiler is a highly efficienct, ultra low NOx emission, condensing gas boiler offering an output range of 18kW to 101.8kW
Documentation Certificateswww.bimstore.co/product/files/documents/2019/02/21/strebel-s-cbx-85-155-gar-certificate.pdf
Documentation Installation Guidewww.bimstore.co/product/files/documents/2019/03/04/strebel-s-cbx-85-155-installation-operating-maintenance-manual-2019-03-01-v2.pdf
Documentation Literaturewww.bimstore.co/product/files/documents/2019/01/14/strebel-s-cbx-brochure-v5.pdf
Documentation Maintenancewww.bimstore.co/product/files/documents/2019/03/04/strebel-s-cbx-85-155-installation-operating-maintenance-manual-2019-03-01-v2.pdf
Documentation Technicalwww.bimstore.co/product/files/documents/2019/01/14/strebel-s-cbx-brochure-tech.pdf
Drain Connection Size25 mm
Duration UnitYears
EF Outter Rad52 mm
ErP Rated Efficiency At Full Load87.2%
ErP Rated Efficiency At Part Load97.6%
ErP Seasonal Efficiency92.6%
Exhaust Flow0.0 L/s
Exhaust Flue Pos X206 mm
Exhaust Flue Pos Y120 mm
Exhaust Flue Rad50 mm
Expected Life15
External MaterialMild Steel
FeaturesHigh Efficiency Condensing Single Boiler
Finishn/a
Flow And Return Connection Size25 mm
Flow And Return Connection TypeThread Seal
Flue Connection Size100 mm
Flue Diameter100 mm
Flue Height85 mm
Flue Or Air Intake ClassificationB23(P), C13, C33, C43, C83 & C98
Flue Outter52 mm
Frequency50Hz
Front MaterialStrebel-MildSteel-Black
Fuel Connection Size20 mm
Fuel Connection TypeThread seal
Full Load Current1.316 amps (without a pump connected)
Fuse Rating5 Amp (to allow an external pump to be connected)
Gas Consumption RateNatural Gas (G20) = 1.9 - 10.2 m3/hr ; LPG (G31) = 0.8 - 3.9 m3/hr
Graden/a
Gross Weight85.50 kg
Heater OperationSpace Heating
Heat Exchanger MaterialStainless Steel
Height845 mm
Hydraulic Resistanceat 11 C Temperature Differentialn/a
Hydraulic Resistanceat 20 C Temperature Differential34kPa
Ifc Export AsIfcBoilerType
Ifc Export TypePset_BoilerTypeCommon
IK Ratingn/a
InterlocksYes
IP Ratingn/a
KeynoteT32
ManufacturerStrebel Ltd
Manufacturer NameStrebel Heating Technology
MaterialStainless Steel Heat Exchanger & Mild Steel Casing
Maximum Gas Inlet PressureNatural Gas (G20) = 25 mbar : LPG (G31) = 57.5 mbar
Maximum Oil Inlet Pressuren/a
Maximum Operating Pressure6 bar
Maximum Power Consumption280 Watts
Minimum Flow Rate At 11 C Temperature Differentialn/a
Minimum Flow Rate At 20 C Temperature Differential0.214 l/s
Minimum Gas Inlet PressureNatural Gas (G20) = 17 mbar ; LPG (G31) = 25 mbar
Minimum Oil Inlet Pressuren/a
Minimum Operating Pressure1.0 bar
Minimum Power Consumptionn/a
ModelStrebel S-CBX105
Model NumberS-CBX
Model ReferenceS-CBX105
MountingWall Hung
NBS DescriptionGas fired condensing boilers
NBS Object NameStrebel_GasFiredCondensingBoilers
NBS Office Master Tagn/a
NBS Reference90-40-05/340
Nominal Depth530 mm
Nominal Gas Inlet PressureNatural Gas (G20) = 20 mbar ; LPG (G31) = 37 mbar
Nominal Height845 mm
Nominal Length440 mm
Nominal Oil Inlet Pressuren/a
NOx Emissions21.3 mg/kWh
Offset0 mm
Oil Consumption Raten/a
Optional FuelLPG
Primary FuelNat Gas
Production Year2018
Product Literaturewww.bimstore.co/product/files/documents/2019/01/14/strebel-s-cbx-brochure-v5.pdf
Product Model NumberS-CBX 105
Product RangeS-CBX Boiler
Rated Criterian/a
Rated Output94.3 kW
Rear MaterialStrebel-MildSteel-Grey
Referenced Standardn/a
Replacement Costn/a
Safety Valve Connection Size0 mm
Safety Valve Connection TypeN/A - No Safety Valve Internal to Boiler, Required to be fitted on Flow Pipe Before and Isolation Valve
ShapeRectangular
Shipping Weight97.00 kg
Sizen/a
Sound Pressure Level68dB
Spare PartsAvailble from Strebel Spares Dept
Starting Current0
Supply Phase230V ~ 50Hz
Tag Numbern/a
Turndown Ratio5:1
Type CommentsS-CBX 85kW Boiler
Type NameS-CBX 85kW Boiler
URLstrebel.co.uk/
Voltage230V
Warranty DescriptionManufacturers Defects Warranty
Warranty Duration Labor5
Warranty Duration Parts5 Heat Exchanger / 2 Spares
Warranty Duration UnitYears
Warranty Guarantor Laborn/a
Warranty Guarantor Partsn/a
Water Content6.5
Waterside Pressure Loss At 11 C Temperature Differentialn/a
Waterside Pressure Loss At 20 C Temperature Differentialn/a
Waterside Pressure Loss At 30 C Temperature Differentialn/a
Water Treatment RequiredAs per chapter 7.11 within S-CBX boiler installation manual with recommended chemicals / inhibitors as per chapter 7.13
Width440 mm
ZoneClearanceZone
