S-CBX Cascade Boiler

by Strebel Heating Technology

Download Add to collection

Description

The S-CBX range comprises four boiler models of a highly efficient, ultra low emission wall hung condensing gas boiler offering an output range from 16kW to 151kW at 50/30 (F/R) with 85kW, 105kW, 125kW and 155kW individual boiler nominal outputs. Each boiler offers NOx emissions of less than 24 mg/kWh (Class 6) in compliance with the maximum 2 credits available under BREEAM’s New Construction 2018 1.0 Technical Manual SD5078 guidelines.

Object Data

1 Revision

Last Updated

29/01/2020

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

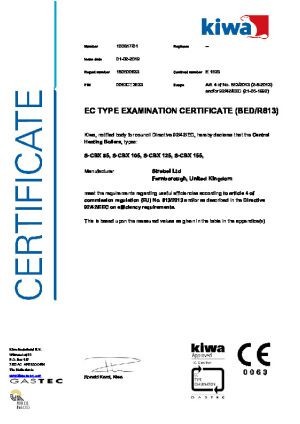

Product Certificates

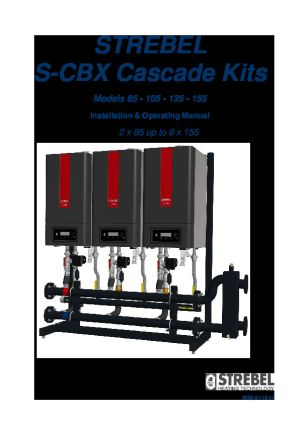

Installation Guide

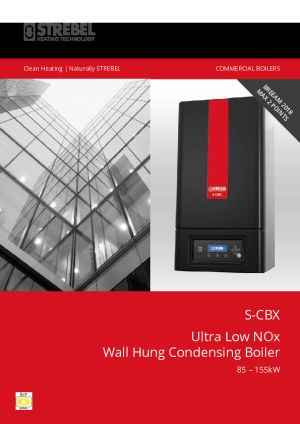

Product Literature

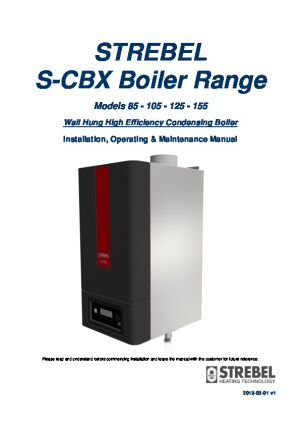

Maintenance Information

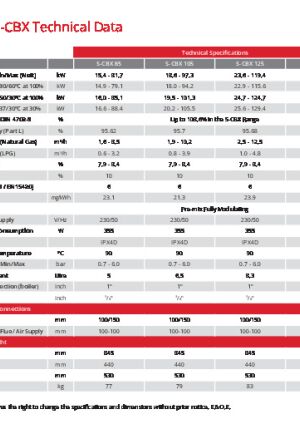

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorIan Holmes
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
Access Clearance Bottom0 mm
Access Clearance Front300 mm
Access Clearance Left50 mm
Access Clearance Rear0 mm
Access Clearance Right50 mm
Access Clearance Top300 mm
Accessibility Performancen/a
Additional Technical Detailsn/a
Air Inlet Connection Size100 mm
Assembly CodeD3020100
Asset TypeFixed
BIM Object NameStrebel_MechanicalEquipment_Boiler_Cascade_(S-CBX)
BMS LinksYes
Boiler Gap50 mm
Building Regulations Seasonal Efficiency95.7%
Burner Control TypeModulating
CE ApprovalYes
Classification NameUniclass2015
Classification ValuePr_60_60_08_34
Code Performancen/a
ColorBlack/Red Front - Silver / Black Side
ColourBlack/Red Front - Silver / Black Side
Combustion Air Flow0.0 L/s
Condensate Drain Size25 mm
Condensate Drain TypeFloat Type Condensate Kit with a black flexible exit hose
ConfigurationSingle
Constituentsn/a
Control TypeOpentherm or 0-10v Controls
Created Bystrebel.co.uk/find-us/
Created On2020-01-28T09:00:00
Depth530 mm
DescriptionThe S-CBX 105 Boiler is a highly efficienct, ultra low NOx emission, condensing gas boiler offering an output range of 18kW to 101.8kW
Documentation Certificateswww.bimstore.co/products/s-cbx-cascade-boiler/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/s-cbx-cascade-boiler/document/installation-guide
Documentation Literaturewww.bimstore.co/products/s-cbx-cascade-boiler/document/product-literature
Documentation Maintenancewww.bimstore.co/products/s-cbx-cascade-boiler/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/s-cbx-cascade-boiler/document/technical-data-sheet
Drain Connection Size25 mm
Duration UnitYears
ErP Rated Efficiency At Full Load87.2%
ErP Rated Efficiency At Part Load97.6%
ErP Seasonal Efficiency92.6%
Exhaust Flow0.0 L/s
Expected Life15
External MaterialMild Steel
FeaturesHigh Efficiency Condensing Boilers
Finishn/a
Flow And Return Connection TypePN6 Flange
FlueFlue : Coaxial Flue
Flue CoaxialFlue : Coaxial Flue
Flue Connection Size100 mm
Flue Diameter100 mm
Flue Height85 mm
Flue LLHFlue : LLH Flue
Flue Or Air Intake ClassificationB23(P), C13, C33, C43, C83 & C98
Flue TwinFlue : Twin Flue
Frequency50Hz
Front MaterialStrebel-MildSteel-Black
Full Load Current1.316 amps (without a pump connected) per boiler
Fuse Rating5 Amp (to allow an external pump to be connected) per boiler
Graden/a
Handle ColourPlastic_Red
Heater OperationSpace Heating
Heat Exchanger MaterialStainless Steel
Height845 mm
Height From Floor900 mm
Hydraulic Resistanceat 11 C Temperature Differentialn/a
Hydraulic Resistanceat 20 C Temperature Differential34kPa
Ifc Export AsIfcBoilerType
Ifc Export TypePset_BoilerTypeCommon
IK Ratingn/a
InterlocksYes
IP Ratingn/a
KeynoteT32
Low Loss HeaderYes
ManufacturerStrebel Ltd
Manufacturer NameStrebel Ltd
MaterialStainless Steel Heat Exchanger & Mild Steel Casing
Maximum Gas Inlet PressureNatural Gas (G20) = 25 mbar : LPG (G31) = 57.5 mbar
Maximum Oil Inlet Pressuren/a
Maximum Operating Pressure6 bar
Maximum Power Consumption280 Watts per boiler
Max Number Of Boilers4
Minimum Flow Rate At 11 C Temperature Differentialn/a
Minimum Flow Rate At 20 C Temperature Differential0.214 l/s
Minimum Gas Inlet PressureNatural Gas (G20) = 17 mbar : LPG (G31) = 25 mbar
Minimum Oil Inlet Pressuren/a
Minimum Operating Pressure1.0 bar
Minimum Power Consumptionn/a
ModelStrebel S-CBX105
Model NumberS-CBX
MountingWall Hung
NBS DescriptionGas fired condensing boilers
NBS Object NameStrebel - Gas fired condensing boilers
NBS Office Master Tagn/a
NBS Reference90-40-05/340
Nominal Depth627 mm
Nominal Gas Inlet PressureNatural Gas (G20) = 20 mbar : LPG (G31) = 37 mbar
Nominal Height1821 mm
Nominal Oil Inlet Pressuren/a
NOx Emissions21.3 mg/kWh
Oil Consumption Raten/a
Optional FuelLPG
Output105
Pipe Kit MaterialStrebel-MildSteel-Grey
Primary FuelNat Gas
Production Year2019
Product Literaturewww.bimstore.co/products/s-cbx-cascade-boiler/document/product-literature
Product Model NumberS-CBX 105
Product RangeS-CBX Boiler
Rated Criterian/a
Rear MaterialStrebel-MildSteel-Grey
Referenced Standardn/a
Replacement Costn/a
Safety Valve Connection Size0 mm
Safety Valve Connection TypeN/A - No Safety Valve Internal to Boiler, Required to be fitted on Flow Pipe Before and Isolation Valve
ShapeRectangular
Shipping Weight97.00 kg
Sizen/a
Sound Pressure Level68dB
Spare PartsAvailble from Strebel Spares Dept
Starting Current0
Supply Phase230V ~ 50Hz
Tag Numbern/a
Turndown Ratio5:1
Type Comments(S-CBX) 105 - Coaxial Flue Connection
URLstrebel.co.uk/
Voltage230V
Warranty DescriptionManufacturers Defects Warranty
Warranty Duration Labor5
Warranty Duration Parts5 Heat Exchanger / 2 Spares
Warranty Duration UnitYears
Warranty Guarantor Laborn/a
Warranty Guarantor Partsn/a
Water DN100Water : DN100
Water DN65Water : DN65
Water DN80Water : DN80
Waterside Pressure Loss At 11 C Temperature Differentialn/a
Waterside Pressure Loss At 20 C Temperature Differentialn/a
Waterside Pressure Loss At 30 C Temperature Differentialn/a
Water Treatment RequiredAs per chapter 7.11 within S-CBX boiler installation manual with recommended chemicals / inhibitors as per chapter 7.13
Width440 mm
ZoneClearanceZone
