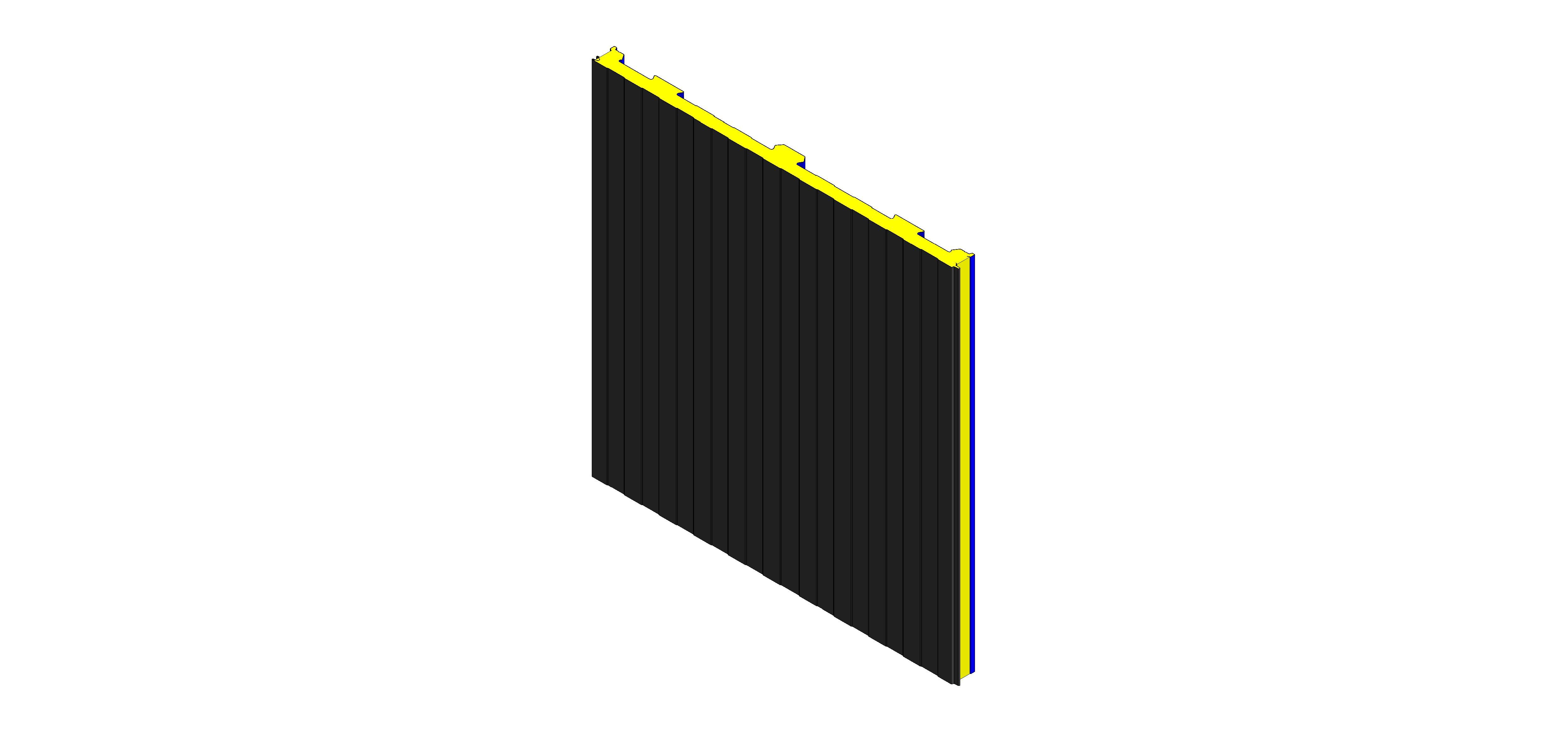

Solar Capped Panel

by Assan Panel Sanayi ve Ticaret A.Ş.

Download Add to collection

Description

Key Features of the SCP:

Sustainable Buildings with Self-Generating Energy Roofs
Compatible with 60-cell and 72-cell PV Modules
Fast and Easy Solar Panel Installation via Exclusive Clamp Without Drilling Sandwich Panel Surface
High Water Resistance
High Corrosion Resistance
PUR & PIR Insulated Production
Low-Slope Roof Applications
Complete Design & Installation Support

Object Data

1 Revision

Last Updated

09/03/2020

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

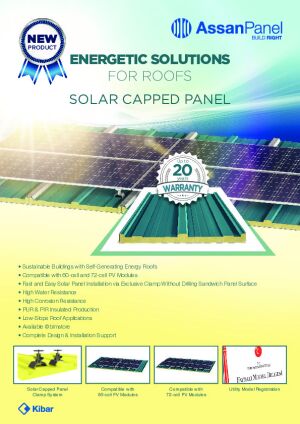

Product Literature

Product Data Sheet

Object metadata

Accessibility Performancen/a
Analytic Construction<None>
Asset TypeFixed
BIMobject categoryRoof
Classification NameUniclass2015
Classification ValueSs_30_40_55
Closed cell ratio (EN 14509)95%
Code Performancen/a
Colorn/a
Constituentsn/a
Construction TypeSolar_Panel
Created Bybimsupport@assanpanel.com.tr
Created On2019-10-23T09:00:00
Date of publishing001
Design countryISTANBUL
Dimensional Stability (EN 13165)Seviye DS (TH) 11
Documentation Certificateswww.assanpanel.com.tr/
Documentation Installation Guidewww.assanpanel.com.tr/
Documentation Literaturewww.assanpanel.com.tr/
Documentation Maintenancewww.assanpanel.com.tr/
Documentation Technicalwww.assanpanel.com.tr/
Duration UnitYears
Expected Life0
External ColourRAL 6050
External Metal Thickness0,4
Featuresn/a
FinishAssan
Flammability Class (EN 13501)B. S2 . d0
Graden/a
Heat Transmission Coefficient λ (EN 13165) (W/Mk)0,022-0,024
Hot Dip Coating Quantity(EN 10327) (gr/m2)Z70
IFC ClassificationRoof
Installation instructionswww.assanpanel.com.tr/en/urunler/sandvic-paneller
Insulation Core MaterialAssan PIR
Internal Metal Thickness0,5
Internal ColourRAL 7048
ManufacturerAssan Panel San. ve Tic. A.Ş.
Manufacturer countryTURKEY
Manufacturer nameAssan Panel San. ve Tic. A.Ş.
Manufacturer NameAssan Panel San. ve Tic. A.Ş.
Materialn/a
maximum size (m)Depends on shipping conditions
Metal Sheet TypeGalvanized
minimum size (m)3
Model nameASSAN_SOLAR_PANEL
Model NumberRoof Panels
Model Referenceinsulated roof panels
NBS Reference Code20-10
NBS Reference DescriptionRoofs
Painted TypePlastisol
Panel orientationRoof panel vertical
Polyurethane Density (EN 1602 (kg/m3)40 (±2)
Product familyRoof Panels
Product groupinsulated roof panels
Production Siteİstanbul
Production Year2019
QR codewww.assanpanel.com.tr/en/urunler/sandvic-paneller/cati-panelleri/r4
Ral CodeAll colors available.Please enter the desired color code @ : 7032
Referenced Standardn/a
RegionALL
Replacement Costn/a
ShapeRectangular
Sizen/a
Spare Partsn/a
Temperature Resistance-200 /+110 ºC
Thicknes30 mm
Type CommentsPrepainted Galvanized Steel Structure
Type NameRoof Panels
Uniclass 1.4 CodeL52
Uniclass 1.4 DescriptionRoof coverings, claddings, linings
Uniclass 2.0 CodeSS-20-10-60
Uniclass 2.0 DescriptionPanel Roof Structure Systems
Uniclass 2015 CodeSs_30_40_55
Uniclass 2015 NameMetal composite panel roof covering systems
URLwww.assanpanel.com.tr/en/
Vapor Diffusion Resistance (EN 12086)30-100
Version numberAssan_Solar_panel_0100
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborn/a
Warranty Guarantor Partsn/a
Water absorption (EN ISO 354)By Volume 2% (168 hours)
width (mm)1000

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
