T6 Plan

Description

The T6 PLAN comes equipped with patented T6 technology in terms of its pioneering central connection, which allows for any size radiator to be installed once the pipe has been placed. The T6 is the only radiator with a patented T distribution system, aiding even heat up of the panel, allowing for the most effective water distribution. It comes with a pre-set valve, factory fitted for ease of installation.

Object Data

1 Revision

Last Updated

09/09/2019

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

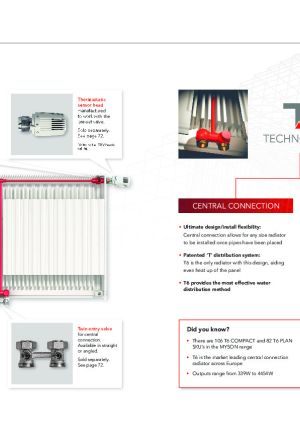

Product Literature

Product Data Sheet

Object metadata

Object

Parameter Type

_AuthorIan Holmes
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
6 Monthlyn/a
Access Clearance Zone Back0 mm
Access Clearance Zone Bottom0 mm
Access Clearance Zone Front0 mm
Access Clearance Zone Left0 mm
Access Clearance Zone Right0 mm
Access Clearance Zone Top0 mm
Accessibility Performancen/a
Air VentYes
Annuallyn/a
Assembly CodeD3020
Asset TypeFixed
Bespoke Timeframen/a
BIM Object NameMyson_MechanicalEquipment_Radiators_T6Plan_Type22
Btu H_Delta T30 Celsius1408
Btu H_Delta T50 Celsius2712
Casing MaterialSteel
CE ApprovalYes
Classification NameUniclass2015
Classification ValuePr_70_60_36_73
Code Performancen/a
ColorWhite
ColourWhite
Connector Diameter15 mm
Constituentsn/a
Convector Thickness35 mm
Created Bysales@myson.co.uk
Created On2019-07-08:T00:00:00
Dailyn/a
Depth105 mm
DescriptionThe T6 PLAN comes equipped with patented T6 technology in terms of its pioneering central connection, which allows for any size radiator to be installed once the pipe has been placed. The T6 is the only radiator with a patented T distribution system, aiding even heat up of the panel, allowing for the most effective water distribution. It comes with a pre-set valve, factory fitted for ease of installation
Dial MaterialPlastic, White
Documentation Certificateswww.myson.co.uk/index.asp
Documentation Installation Guidewww.myson.co.uk/index.asp
Documentation Literaturewww.myson.co.uk/index.asp
Documentation Maintenancewww.myson.co.uk/index.asp
Documentation Technicalwww.myson.co.uk/index.asp
Drain TapNo
Duration UnitYears
Embodied Carbonn/a
Energy Technology Listn/a
Environmental Product Declarationn/a
Expected Life0
Featuresn/a
Finishn/a
FinnedYes
Finn MaterialConvector Fins
Floor StandsNo
Graden/a
Green Guide For Specificationn/a
Grille Depth78 mm
Grille Length770 mm
Grille Offset15 mm
Gross Weight0.75 kg
Heat Emitter MaterialSteel
Heat ReflectorNo
Heat Transfer Mediumn/a
Height450 mm
Height From Floor100 mm
Ifc Export AsIfcSpaceHeater
Ifc Export TypeIfcSpaceHeaterTypeEnum.RADIATOR
Inlet GrilleNo
Integral Locksheild ValveNo
Integral Regulating ValveNo
Integral TRVNo
KeynoteT30/350
Length800 mm
Life Cycle Analysisn/a
Location Of Manufacturern/a
Maintenance Required 0-300hrsn/a
Maintenance Required 1001-2000hrsn/a
Maintenance Required 2001-4000hrsn/a
Maintenance Required 301-600hrsn/a
Maintenance Required 4001-8000hrsn/a
Maintenance Required 601-1000hrsn/a
Maintenance Required 8001-12000hrsn/a
ManufacturerMYSON
Manufacturer NameMYSON
Manufacturer Websitewww.myson.co.uk/index.asp
MaterialSteel
Material Ingredient Reportingn/a
Maximum Operating Pressure800000.0 Pa
Maximum Operating Temperature100 °C
Maximum Test Pressure1050000.0 Pa
ModelT6 Plan - Type 22
Model Number12 DC 31
Model ReferenceT6 Plan - Type 22
Monthlyn/a
Mounting TypeWall Brackets
NBS DescriptionRadiators
NBS Object NameMYSON - Radiators
NBS Office Master Tagn/a
NBS Reference90-40-35/405
Nominal Depth105 mm
Nominal Height450 mm
Nominal Length800 mm
Number Of Panels0
Number Of Sections0
O&M Manualn/a
Offset From Wall7 mm
Order Code12 DC 31
Outlet GrilleNo
Overall Height450 mm
Overall Length800 mm
Overall Width105 mm
Pipe Connection Size15 mm
Possible Connections Positionsn/a
Pressure Drop0.0 Pa
Production Year2019
Product Literaturewww.myson.co.uk/index.asp
Product Model Number12 DC 31
Product RangePanel Radiators
Quaterlyn/a
Rad MaterialRAL 9016
Referenced Standardn/a
Reference StandardBS EN 442
Replacement Costn/a
Responsible Extraction Of Materialsn/a
Responsible Sourcing Of Materialsn/a
Seam Typen/a
Shapen/a
Shipping Weight0.75 kg
Sizen/a
Spare Partsn/a
Temperature Classificationn/a
Thermal Output0 W
TypeT6 Plan - Type 22
Type Comments300x1000mm
Type Name300x1000mm
URLwww.myson.co.uk/index.asp
Valve MaterialRAL 9016
Wall BracketsYes
Warranty Descriptionn/a
Warranty Duration Laborn/a
Warranty Duration Parts10
Warranty Duration UnitYears
Warranty Guarantor Laborn/a
Warranty Guarantor Partssales@myson.co.uk
Warranty IDn/a
Water Content0.0 L
Water Flow Raten/a
Watts_Delta T30 Celsius413
Watts_Delta T50 Celsius795
Weeklyn/a

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
