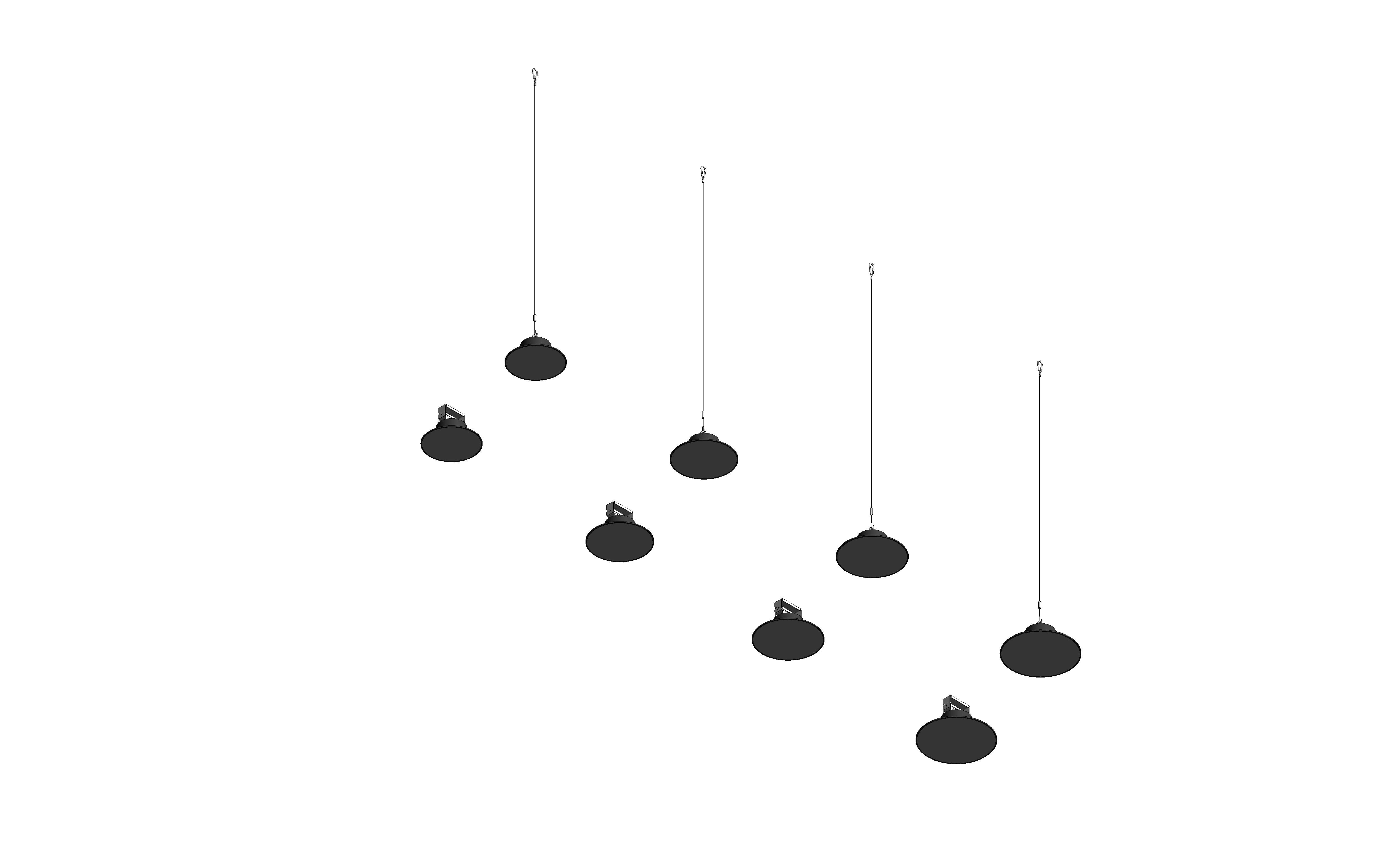

ATLAS | UFO Highbay Suspended or Surface Mount

by Experience La Luce

Download Add to collection

Description

ATLAS

Features

High quality cost effective UFO Highbay
Used in Industrial Warehousing
Multiple optic options available for maximum design efficiency deliver unrivalled versatility

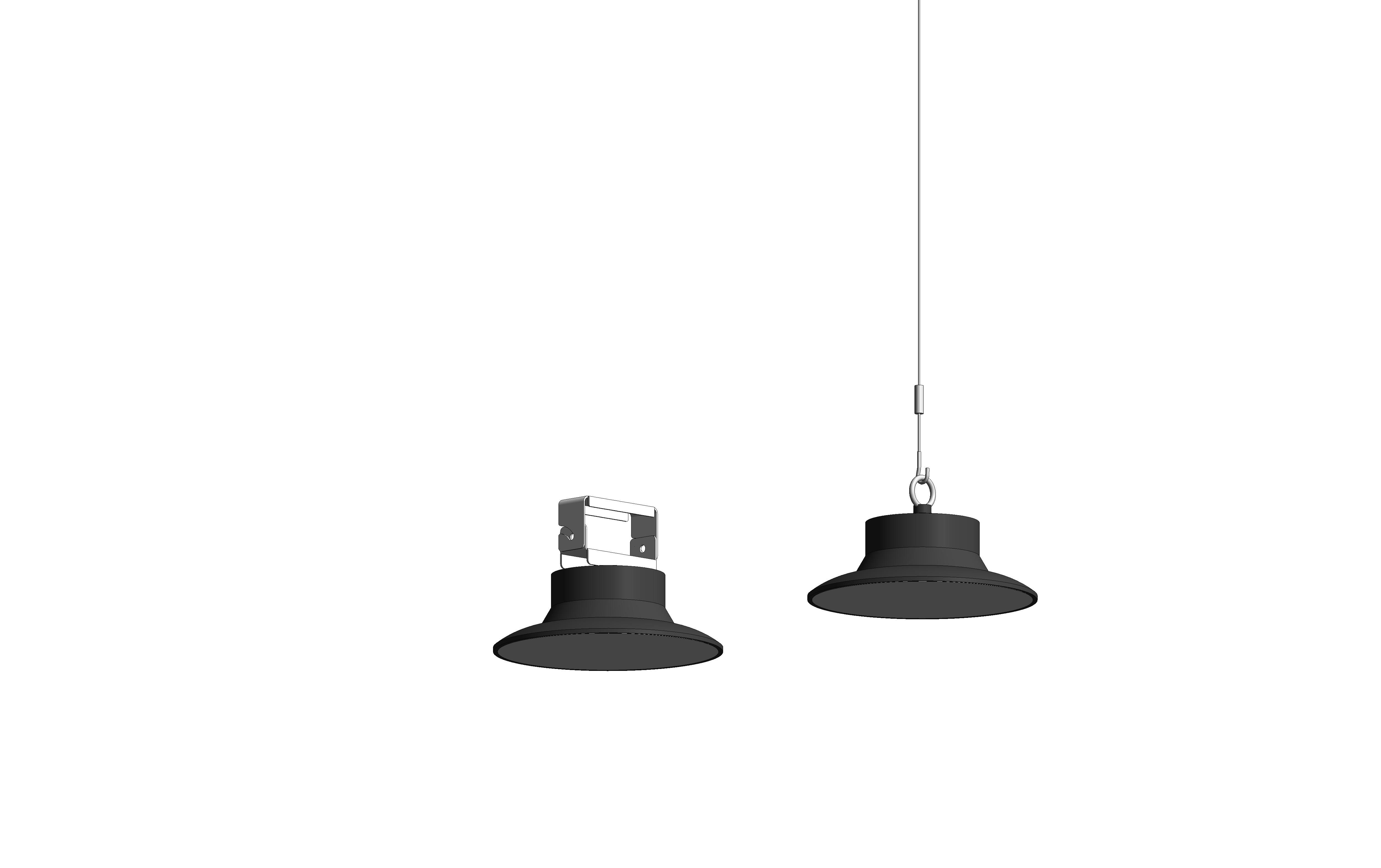

Suspended and Surface Mounted options available

Object Data

1 Revision

Last Updated

05/03/2026

Available Software

BSB

Compliant

EPD

Not Available

Accompanying literature

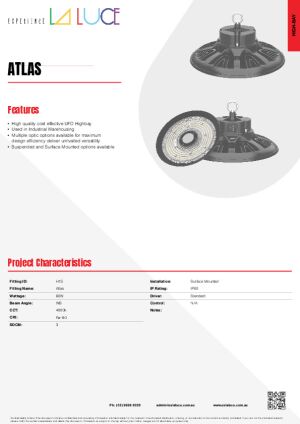

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorIH
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstoreoz.au/
_Current Revision1
_Distributed Bywww.bimstoreoz.au/
_Object User Guidewww.exlaluce.com.au/
Accessibility Performancen/a
Asset TypeFixed
BIM Object NameExLaLuce_LightFixture_Atlas
Classification NameUniclass2015
Classification ValuePr_70_70_48_85
Code Performancen/a
ColorBlack
Color Filter16777215
Constituentsn/a
Created Byadmin@exlaluce.com.au
Created On2025-03-13T09:00:00
CRIRa+80
CRI OptionsRa+90
Default Elevation1219 mm
DescriptionUFO Highbay Suspended or Surface Mount
Dimming Lamp Color Temperature Shift<None>
Documentation Certificateswww.exlaluce.com.au/
Documentation Installation Guidewww.exlaluce.com.au/
Documentation Literaturewww.exlaluce.com.au/
Documentation Maintenancewww.exlaluce.com.au/
Documentation Technicalwww.exlaluce.com.au/
Duration UnitYears
Emit from Circle Diameter260 mm
Emit Shape Visible in RenderingNo
Expected Life0
Export Type to IFC AsIfcLampType
FeaturesHigh quality cost effective UFO Highbay. Used in Industrial Warehousing. Multiple optic options available for maximum design efficiency deliver unrivalled versatility. Suspended and Surface Mounted options available.
FinishBlack
Graden/a
Ifc Export AsIfcLampType
Ifc Export TypeLED
IK RatingIK08
IP RatingIP65
Light Diameter260 mm
Lighting Element MaterialExLaLuce_LightingElement
ManufacturerExperience La Luce
Manufacturer NameExperience La Luce
MaterialAluminium Die Cast
ModelATLAS
Model NumberLL ATLAS 60
Model ReferenceATLAS - 060W - Diffused Beam
Mount MaterialExLaLuce_SuspendedCable
NBS DescriptionSurface luminaires
NBS Object NameExperience La Luce - Surface luminaires
NBS Office Master Tagn/a
NBS Reference90-60-50/390
Nominal Depth260 mm
Nominal Height0 mm
Nominal Length260 mm
Operating Temp-35°C - +50°C
Photometric Web FileLL ATLAS 60 DB 840_IESNA2002.IES
Primary MaterialExLaLuce_Atlas_Black
Production Year2025
Referenced Standardn/a
Replacement Costn/a
SDCM3
SDCM Options4 and 5
ShapeCircular
Spare Partsn/a
Tilt Angle90.00 °
Type CommentsATLAS - 060W - Diffused Beam
Type IFC Predefined TypeLED
Type NameATLAS - 060W - Diffused Beam
UGRn/a
URLwww.exlaluce.com.au/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laboradmin@exlaluce.com.au
Warranty Guarantor Partsadmin@exlaluce.com.au
Watt60 W

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
