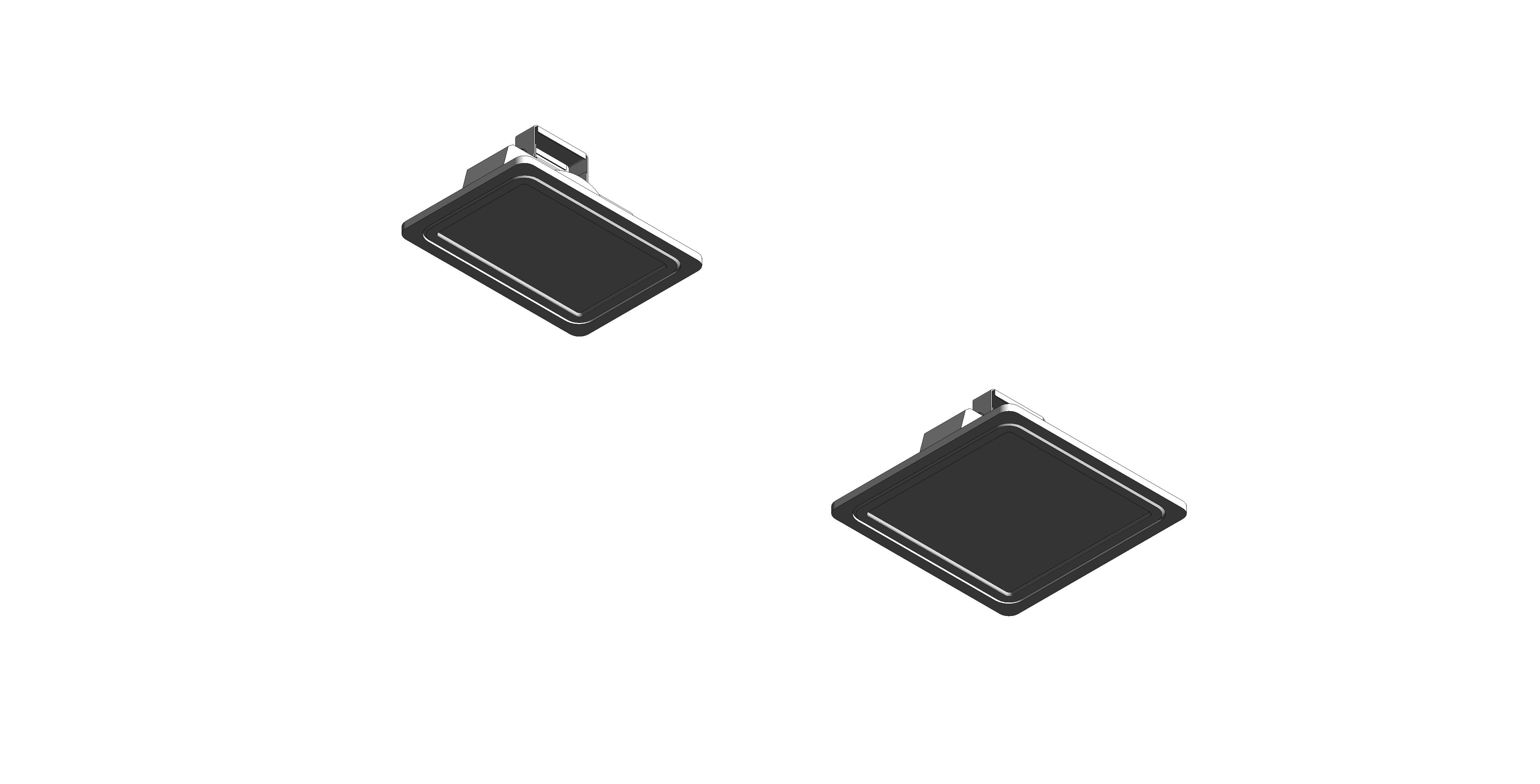

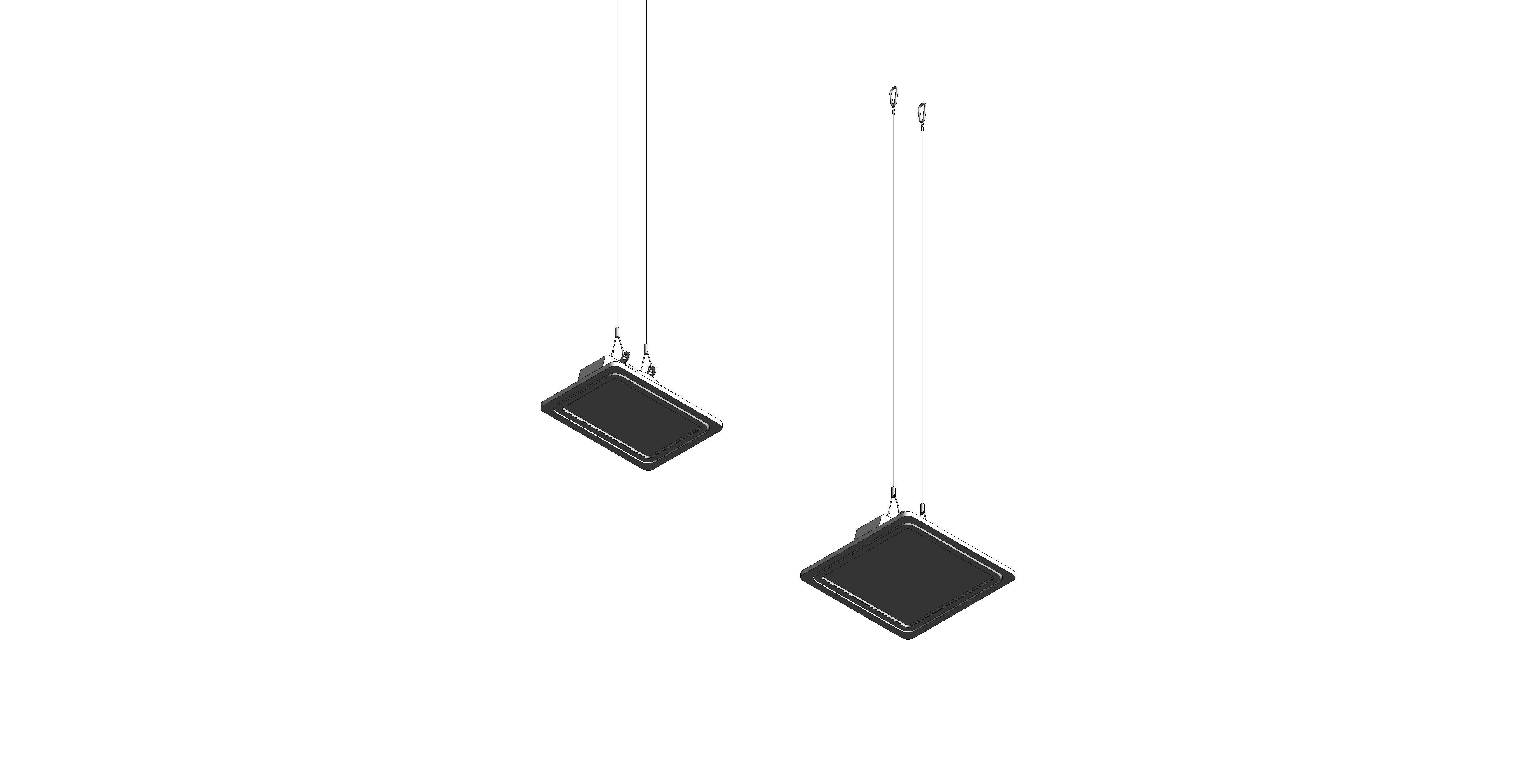

Dexter G2 | Food Safe Suspended and with Surface Mount Bracket

by Experience La Luce

Download Add to collection

Description

Dexter G2 | Food Safe Suspended and with Surface Mount Bracket

Food Safe Premium Aluminum Suspended fitting or with Surface Mounted frame and shatterproof polycarbonate or acrylic diffuser.
Used in standard Industrial Warehousing and Industrial Manufacturing, Workshops and Indoor Stadiums.
Multiple optic options available for maximum design efficiency deliver unrivalled lighting distribution.
Interchangeable optics per light fitting which will provide versatility for the life of the asset.
Protective UV Stabilised power coat finish or optional chemical resistant powder coat finish available for superior lifespan in harsh environments.

Object Data

1 Revision

Last Updated

25/06/2025

Available Software

BSB

Compliant

EPD

Not Available

Accompanying literature

Product Literature

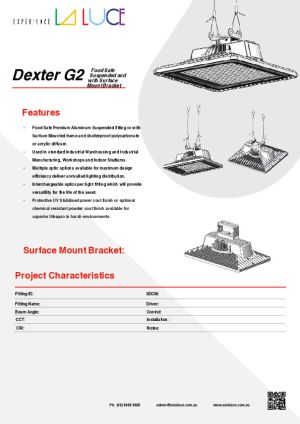

Product Data Sheet

Object metadata

Object

Parameter Type

_AuthorIH
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstoreoz.au/
_Current Revision1
_Distributed Bywww.bimstoreoz.au/
_Object User Guidewww.exlaluce.com.au/
Accessibility Performancen/a
Asset TypeFixed
BIM Object NameExLaLuce_LightFixture_DexterG2_SurfaceMount
Classification NameUniclass2015
Classification ValuePr_70_70_48_85
Code Performancen/a
ColorWhite
Color Filter16777215
Constituentsn/a
Created Byadmin@exlaluce.com.au
Created On2025-03-13T09:00:00
CRI>70
CRI Options80 and 90
Default Elevation1219 mm
Depth280 mm
DescriptionFood grade Premium Stainless Steel surface mounted enclosure or stainless-steel recessed frame and shatterproof polycarbonate or acrylic diffuser.
Dimming Lamp Color Temperature Shift<None>
Documentation Certificateswww.exlaluce.com.au/
Documentation Installation Guidewww.exlaluce.com.au/
Documentation Literaturewww.exlaluce.com.au/
Documentation Maintenancewww.exlaluce.com.au/
Documentation Technicalwww.exlaluce.com.au/
Duration UnitYears
Emit from Rectangle Length400 mm
Emit from Rectangle Width280 mm
Emit Shape Visible in RenderingNo
Expected Life0
FeaturesMultiple optic options available for maximum design efficiency deliver unrivalled lighting distribution. Protective UV Stabilised power coat finish or optional chemical resistant powder coat finish available for superior lifespan in harsh environments.
FinishPowder Coated
Graden/a
Height62 mm
Ifc Export AsIfcLampType
Ifc Export TypeLED
IK RatingIK10
IP RatingIP65
ManufacturerExperience La Luce
Manufacturer NameExperience La Luce
MaterialStainless Steel
ModelDEXTER G2
Model ReferenceDexter G2 - 150W - Linear Asymmetric
NBS DescriptionSurface luminaires
NBS Object NameExperience La Luce - Surface luminaires
NBS Office Master Tagn/a
NBS Reference90-60-50/390
Nominal Depth280 mm
Nominal Height62 mm
Nominal Length400 mm
Operating Temp-40ºC to +45ºC
Photometric Web FileDEXTER G2 150W LA.IES
Production Year2025
Referenced Standardn/a
Replacement Costn/a
SDCM5
SDCM Options3 and 4
ShapeRectangle
Spare Partsn/a
Tilt Angle90.00 °
Type CommentsDexter G2 - 150W - Linear Asymmetric
Type NameDexter G2 - 150W - Linear Asymmetric
UGR>22
URLwww.exlaluce.com.au/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laboradmin@exlaluce.com.au
Warranty Guarantor Partsadmin@exlaluce.com.au
Watt150 W
Width400 mm

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
