CHOPPER | LED Wall Pack Light

by Experience La Luce

Download Add to collection

Description

CHOPPER

Features

LED Wall Pack Light
Multiple applications including commercial
Buildings, parking lots, public areas and schools.
Easy installation
Emergency back-up / Sensor Options available

Object Data

1 Revision

Last Updated

23/02/2026

Available Software

BSB

Compliant

EPD

Not Available

Accompanying literature

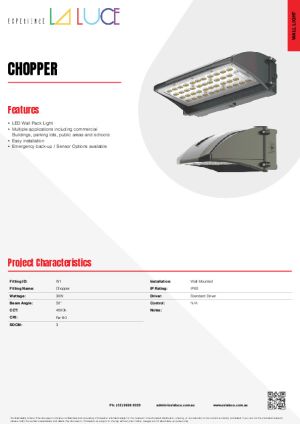

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorIH
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstoreoz.au/
_Current Revision1
_Distributed Bywww.bimstoreoz.au/
_Object User Guidewww.exlaluce.com.au/
Accessibility Performancen/a
Asset TypeFixed
BIM Object NameExLaLuce_LightFixture_Chopper
Classification NameUniclass2015
Classification ValuePr_70_70_48_85
Code Performancen/a
ColorBlack
Color Filter16777215
Constituentsn/a
Created Byadmin@exlaluce.com.au
Created On2026-02-16T09:00:00
CRIRa+80
CRI Options90
Default Elevation1219 mm
Depth165 mm
DescriptionLED Wall Pack Light
Dimming Lamp Color Temperature Shift<None>
Documentation Certificateswww.exlaluce.com.au/
Documentation Installation Guidewww.exlaluce.com.au/
Documentation Literaturewww.exlaluce.com.au/
Documentation Maintenancewww.exlaluce.com.au/
Documentation Technicalwww.exlaluce.com.au/
Duration UnitYears
Emit from Rectangle Length184 mm
Emit from Rectangle Width116 mm
Emit Shape Visible in RenderingNo
Expected Life0
Export Type to IFC AsIfcLampType
FeaturesLED Wall Pack Light. Multiple applications including commercial. Buildings, parking lots, public areas and schools. Easy installation. Emergency back-up / Sensor Options available.
FinishBlack
Graden/a
Height108 mm
Ifc Export AsIfcLampType
Ifc Export TypeLED
IK RatingIK08
IP RatingIP65
Lighting ElementsExLaLuce_LightingElement
ManufacturerExperience La Luce
Manufacturer NameExperience La Luce
MaterialPolycarbonate
ModelCHOPPER
Model NumberLL WP-30W-01-G4
Model ReferenceCHOPPER - 030W
NBS DescriptionSurface luminaires
NBS Object NameExperience La Luce - Surface luminaires
NBS Office Master Tagn/a
NBS Reference90-60-50/390
Nominal Depth165 mm
Nominal Height108 mm
Nominal Length235 mm
Operating Temp-30°C - +60°C
Photometric Web FileBR-WP30W-01-G4.ies
Primary MaterialExLaLuce_Chopper_Black
Production Year2026
R6 mm
R18 mm
Referenced Standardn/a
Replacement Costn/a
SDCM3
SDCM Options5 and 7
ShapeRectangle
Size235 x 108 x 164.8 mm
Spare Partsn/a
Tilt Angle90.00 °
Type CommentsCHOPPER - 030W
Type IFC Predefined TypeLED
Type NameCHOPPER - 030W
UGRn/a
URLwww.exlaluce.com.au/
W1208 mm
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laboradmin@exlaluce.com.au
Warranty Guarantor Partsadmin@exlaluce.com.au
Watt30 W
Width235 mm

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
