MARS G2 | Floodlight Surface Mounted or Pole Mounted

by Experience La Luce

Download Add to collection

Description

MARS G2

Features

Up to 1200W and over 120,000 luminous flux
System efficacy exceeding 140 Im/W
Protective UV stabilized powder coated finish
IP65 weather resistant 0-10V or DALI
Dimming options
Pole and surface mounting options available

Object Data

1 Revision

Last Updated

05/03/2026

Available Software

BSB

Compliant

EPD

Not Available

Accompanying literature

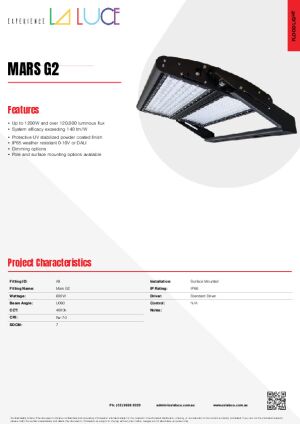

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorIH
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstoreoz.au/
_Current Revision1
_Distributed Bywww.bimstoreoz.au/
_Object User Guidewww.exlaluce.com.au/
Accessibility Performancen/a
Asset TypeFixed
BIM Object NameExLaLuce_LightFixture_MarsG2
Classification NameUniclass2015
Classification ValuePr_70_70_48_85
Code Performancen/a
ColorBlack
Constituentsn/a
Created Byadmin@exlaluce.com.au
Created On2026-02-16T09:00:00
CRIRa+80
CRI Options> Ra 80
Default Elevation1219 mm
Depth325 mm
DescriptionFloodlight Pole or Surface Mount
Documentation Certificateswww.exlaluce.com.au/
Documentation Installation Guidewww.exlaluce.com.au/
Documentation Literaturewww.exlaluce.com.au/
Documentation Maintenancewww.exlaluce.com.au/
Documentation Technicalwww.exlaluce.com.au/
Double PCBNo
Duration UnitYears
Expected Life0
Export Type to IFC AsIfcLampType
FeaturesUp to 1200W and over 120,000 luminous flux. System efficacy exceeding 140 Im/W. Protective UV stabilized powder coated finish. IP65 weather resistant 0-10V or DALI. Dimming options. Pole and surface mounting options available.
FinishPowder Coated
Graden/a
Ifc Export AsIfcLampType
Ifc Export TypeLED
IK RatingIK08
IP RatingIP65
Light Element Depth185 mm
Light Element Depth Offset62 mm
Light Element Height Offset54 mm
Light Element Length157 mm
Lighting ElementsExLaLuce_LightingElement
Light TypeLightSource : A045 - 60W
Light Unit Width217 mm
ManufacturerExperience La Luce
Manufacturer NameExperience La Luce
MaterialAluminium
ModelMARS G2
Model ReferenceMARS G2 - 0060W - A045 Beam Angle
NBS DescriptionSurface luminaires
NBS Object NameExperience La Luce - Surface luminaires
NBS Office Master Tagn/a
NBS Reference90-60-50/390
Nominal Depth325 mm
Nominal Height91 mm
Nominal Length253 mm
Operating Temp-40ºC to +45ºC
Post Connector Height 2103 mm
Primary MaterialExLaLuce_MarsG2_Black
Production Year2026
Referenced Standardn/a
Replacement Costn/a
Rotation Centre184 mm
SDCM7
SDCM Options3 and 5
ShapeRectangle
Single PCBYes
Size259 x 367 x 91 mm
Spare Partsn/a
Type CommentsMARS G2 - 0060W - A045 Beam Angle
Type IFC Predefined TypeLED
Type NameMARS G2 - 0060W - A045 Beam Angle
UGRn/a
URLwww.exlaluce.com.au/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laboradmin@exlaluce.com.au
Warranty Guarantor Partsadmin@exlaluce.com.au
Watt60 W

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
